Overview

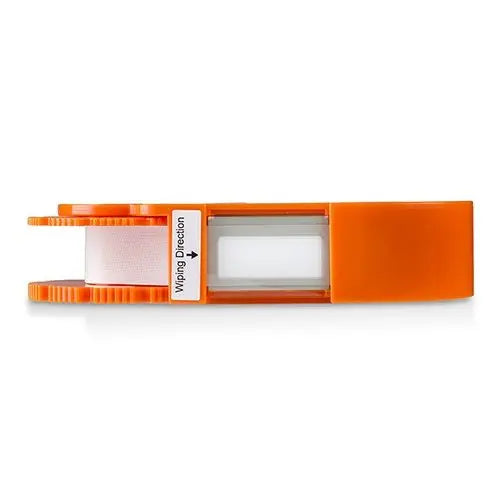

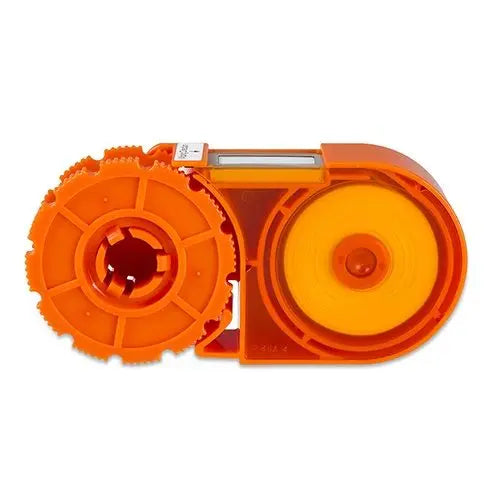

The Sticklers™ MCC-CCWMT CleanClicker™ is a precision-engineered fiber optic cassette cleaner designed for cleaning male MPO connectors. It features a 3.65 mm wide window pad with a specialized back-plate that is narrower than the distance between MPO guide pins, allowing for thorough cleaning of end-faces around the pins.
This device is intended for field and data center environments, providing static-free cleaning of male MPO connectors, as well as standard SC, FC, ST, and LC connectors. Its soft, lint-free, ultrasonically cut micro-woven ribbon effectively lifts contaminants without damaging sensitive connector end-faces.
Key Features
-
MPO/MT Optimization
Features a back-plate design engineered to clean end-faces effectively around MPO alignment pins. -
Broad Compatibility
Compatible with male MPO connectors and standard simplex SC, FC, ST, and LC connectors. -
Static-Free Cleaning
Utilizes specialized materials to prevent static buildup during the cleaning process. -
Lint-Free Ribbon
Uses ultrasonically cut, micro-woven ribbon for scratch-free removal of dust and residues. -
High Capacity
The cassette provides 500+ cleanings with its 40-foot internal ribbon. -
Manual Advance
Features a manual cleaning wheel to advance the ribbon and a clear housing for monitoring remaining material.
Applications
- Data center fiber infrastructure
- MPO/MT connector maintenance
- Cleaning unmated jumper assemblies
- Standard connector maintenance (SC, FC, ST, LC)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sticklers |
| Model | MCC-CCWMT |
| Cleaning Capacity | 500+ cleans |
| Ribbon Length | 40 ft |
| Window Width | 3.65 mm |
Frequently Asked Questions
Is this cleaner compatible with female MPO connectors?
No, this model (MCC-CCWMT) is specifically designed for male MPO/MT connectors. The MCC-CCWRC model is required for female MPO connectors.
Does this cleaner require any solvent?
The cassette cleans dry, but results can be enhanced by using Sticklers MCC-POC03M or MCC-POC10M cleaning fluid if preferred.
How do I know when the ribbon is empty?
The tool features a clear housing window that allows you to visually inspect the remaining quantity of the cleaning ribbon.
Can it clean connectors other than MPO?
Yes, it is also effective for simplex SC, FC, ST, and LC connectors.
How many cleans does it provide?
The cassette provides at least 500 cleanings.
