Overview

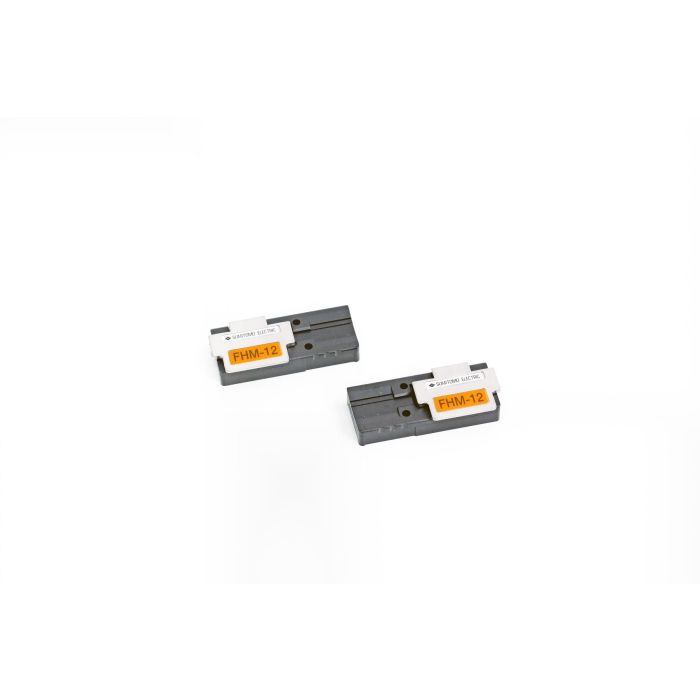

The Sumitomo Fiber Holder for 12-fiber ribbon is designed for precise fiber positioning during the cleaving and fusion splicing process. This C-shape holder is engineered to securely clamp 12-fiber ribbons, ensuring consistent alignment for mass fusion splicing applications.
These holders are essential for maintaining the correct fiber geometry and spacing required for high-performance ribbon fiber splicing. They are intended for use in professional field and data center environments, facilitating efficient and repeatable splicing operations when integrated with compatible Sumitomo mass fusion splicers.
Key Features
-
12-Fiber Ribbon Capacity
Optimized to securely hold and align 12-fiber ribbon configurations for mass splicing. -
C-Shape Design
Features a specific C-shape geometry that ensures stable fiber retention during the preparation and splicing stages. -
Precision Alignment
Maintains precise fiber pitch and positioning to support low-loss splice results. -
Durable Construction
Built to withstand the rigors of daily field use by fiber technicians and contractors. -
Repeatable Performance
Engineered to provide consistent results across multiple cleaving and splicing cycles. -
Ergonomic Handling
Designed for quick and easy loading into the splicer's fiber holding mechanism.
Applications
- Mass fusion splicing of 12-fiber ribbon cables
- Ribbon fiber network installation and maintenance
- Central office and data center fiber interconnects
- High-density fiber optic cable management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sumitomo |
| Part Number | FHM12V |
| Fiber Type | 12-Fiber Ribbon |
| Design Style | C-Shape |
Frequently Asked Questions
What is the purpose of this fiber holder?
It is used to hold 12-fiber ribbons securely in place to ensure proper alignment during the cleaving and fusion splicing process.
Is this compatible with all fusion splicers?
This holder is designed for use with specific Sumitomo mass fusion splicers. Please verify your machine model compatibility.
What does the C-shape refer to?
The C-shape is the specific mechanical design profile of the holder used to clamp and guide the fiber ribbon.
Can I use this for single fiber splicing?
No, this holder is specifically engineered for 12-fiber ribbon arrays.
How many come in an order?
This item is sold as a single unit (EA).
