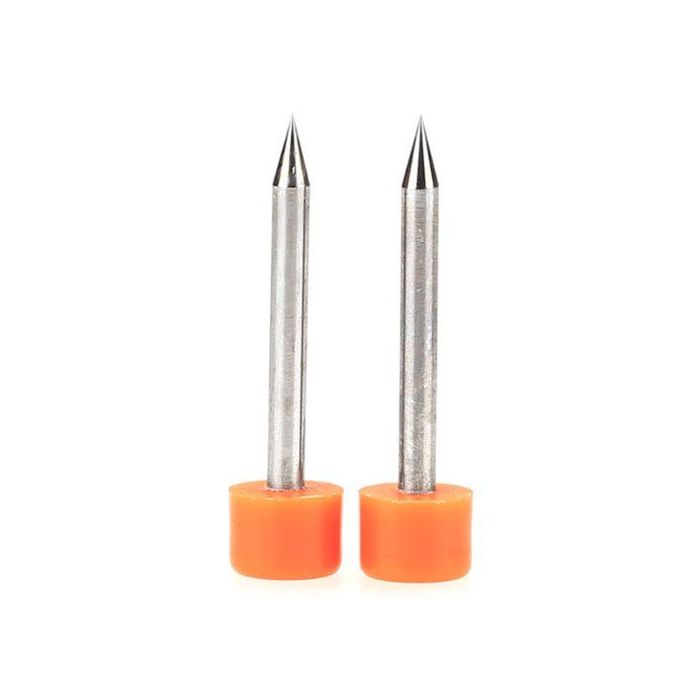

Sumitomo Fusion Splicer Electrodes for QH201e Splicer (Pair)

Overview

These replacement electrodes are designed specifically for use with the Sumitomo QH201e fusion splicer. The set includes a pair of electrodes engineered to maintain consistent arc performance and ensure precision splicing results. These components are essential for fiber technicians performing routine maintenance on their fusion splicing equipment to keep the unit in optimal operating condition.

Fusion splicer electrodes have a finite lifespan and will eventually degrade due to the high-voltage arc discharges required for splicing. Replacing these electrodes as they wear down is critical to preserving the integrity of fiber splices and the overall efficiency of the splicing process.

Key Features

• Exact Fit Design
  Engineered specifically for the Sumitomo QH201e model to ensure seamless installation and hardware compatibility.
• High-Voltage Performance
  Supports the generation of stable arc discharges, which is necessary for precise and low-loss fiber optic splicing.
• Pair Configuration
  Supplied as a complete matched pair to ensure balanced electrode wear and optimal arc positioning.
• Essential Maintenance Component
  Replacing worn electrodes prevents splice errors and maintains consistent performance over the life of the splicer.
• Durable Construction
  Manufactured to withstand the thermal stresses associated with recurring high-voltage electric arcs.
• Optimized Arc Stability
  Helps maintain the proper plasma arc characteristics required for high-quality splicing of various fiber types.

Applications

• Routine maintenance for Sumitomo QH201e fusion splicers
• Field fiber optic network installation
• Data center fiber infrastructure maintenance
• Telecommunications repair and restoration

Technical Specifications

Frequently Asked Questions

How often should I replace the electrodes on my QH201e?
Electrodes should be replaced according to the manufacturer-recommended usage cycle, typically defined by the number of arc discharges performed. Consult your splicer manual for the specific threshold.

Do I need to replace both electrodes at the same time?
Yes, it is recommended to replace electrodes in pairs to ensure balanced arc performance and consistent splicing results.

What happens if I use worn-out electrodes?
Worn electrodes can lead to unstable arcs, which may result in increased splice loss, bubbles in the splice, or mechanical failure of the spliced fiber.

Are these electrodes compatible with other Sumitomo splicer models?
No, these electrodes are specific to the QH201e. Always refer to your splicer's technical documentation to verify compatibility before installation.

Is any calibration required after replacement?
Yes, after installing new electrodes, it is standard practice to perform an arc calibration on your fusion splicer to optimize the arc power for the new electrodes.
