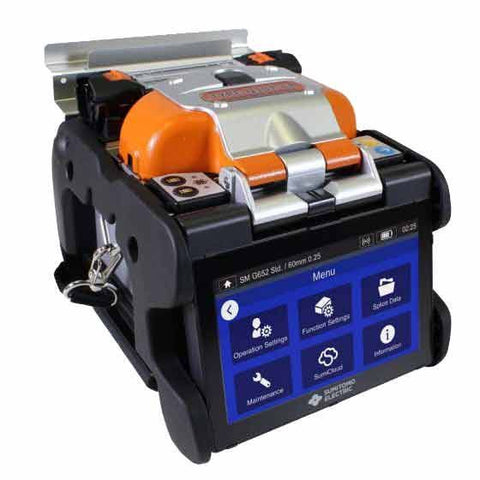

Sumitomo TYPE-Q102-CA+ Quantum Fusion Splicer Kit with Full Fiber Holder Set and Auto Blade Cleaver
SKU: TYPEQ102CAPKIT8RFH
No Export

The TYPE-Q102-CA+ Quantum Fusion Splicer represents the pinnacle of core alignment technology from Sumitomo Electric Lightwave. Built on a Linux-based platform with an intuitive, smartphone-style interface, it delivers both power and ease of use. With ultra-fast 5-second splice times and dual 9-second heaters, this splicer dramatically boosts efficiency. The rugged design withstands shock, dust, and water, making it the ideal choice for field professionals. This complete kit includes 250µm, 900µm, and loose buffer fiber holders, as well as a high-precision cleaver with automatic blade rotation.

Download Product Spec Sheet:

• Spec sheet (PDF)

Key Features

• Fastest Splicing in the Industry – 5 sec splice time and 9 sec dual sleeve heating

• NanoTune™ Technology – Optimized core alignment for improved consistency

• Linux-Based Touch UI – 5" HD touchscreen with pan, zoom, drag and pinch gestures

• Ultra-Rugged Design – Shock-resistant to 76 cm, IPx2 water-resistant, IP5x dustproof

• Extended Battery Life – Up to 320 splice and heat cycles per charge

• SOC Compatible – Supports FIS and Lynx2 Splice-On Connectors

Kit Includes

• TYPE-Q102-CA+ Core Alignment Fusion Splicer

• 250µm, 900µm, and Loose Buffer Fiber Holders

• Precision Handheld Cleaver with Auto Rotating Blade (FC-8R)

• Fiber Stripper (JR-M03)

• One Pack of Fiber Protection Sleeves

• Spare Electrodes (ER-10)

• AC Adapter / Battery Charger with Power Cord

• Battery Unit (BU-102)

• Shipping Case

Note: This product is restricted to U.S. domestic sales only. No export allowed.
