Overview

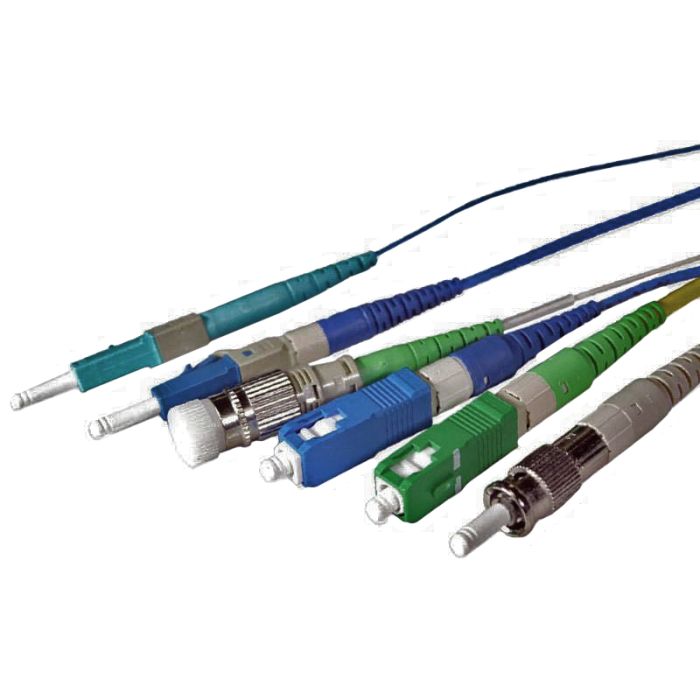

The Sumitomo Lynx CustomFit 2 Splice-On Connector is a high-performance fiber optic connector engineered for precise, on-site terminations. Designed to facilitate permanent, field-installed connections for FTTx, outside-plant, and inside-plant environments, this connector eliminates the logistical delays, excess cable slack, and potential risks associated with preterminated assemblies.
This connector features an advanced design suitable for high-density applications and provides consistent, reliable signal integrity. By allowing for exact cable lengths during installation, it minimizes the need for cable slack management while maintaining compatibility with a wide range of industry-standard splicing equipment.
Key Features
-
High-Density Design
Optimized physical architecture suitable for space-constrained rack and enclosure environments. -
Field Termination Precision
Enables installers to terminate fiber to exact lengths on-site, reducing excess slack and potential cable management issues. -
Low Insertion Loss
Engineered to minimize optical power loss for consistent signal transmission. -
Low Return Loss
Minimizes back-reflections to ensure superior signal integrity in high-bandwidth networks. -
Broad Compatibility
Designed to be compatible with Sumitomo fusion splicers as well as other common industry splicing platforms. -
Standardized Compliance
Meets Telcordia GR-326-CORE and GR-1081-CORE requirements for rigorous quality and environmental performance.
Applications
- FTTx (Fiber to the X) deployments
- Outside-plant network installations
- Inside-plant fiber cabling
- High-density data center cross-connects
- Custom field cable builds
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sumitomo |
| Connector Type | LC PC |
| Fiber Type | Multimode OM3/OM4/OM5 |
| Compatible Fiber Size | 250um / 900um |
| Standards | Telcordia GR-326-CORE, GR-1081-CORE |
Frequently Asked Questions
Are these connectors compatible with non-Sumitomo fusion splicers?
Yes, the Lynx CustomFit 2 connectors are designed to be cross-compatible with most major brands of fusion splicers.
Can I use these for singlemode fiber?
This specific part number is designed for multimode (OM3/4/5) fiber applications.
Are there minimum order requirements?
Yes, these connectors must be ordered in multiples of ten.
Does this kit include the fiber cable?
No, this is a splice-on connector for use with compatible 250um or 900um fiber cable.
What is the benefit of using splice-on connectors over preterminated cables?
Splice-on connectors allow for exact on-site lengths, which eliminates excess cable slack and the logistical risks associated with ordering pre-measured factory cables.
