Overview

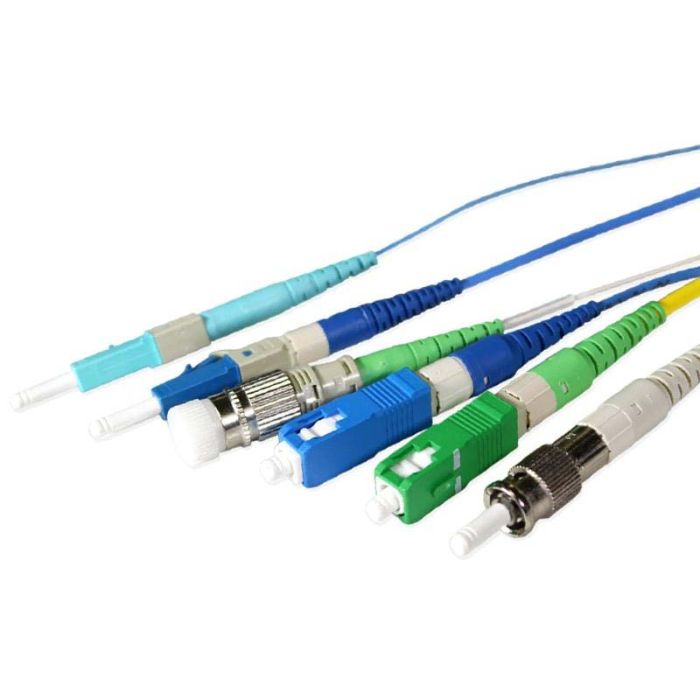

The Sumitomo Lynx-CustomFit(TM) SC UPC Singlemode Splice-On Connector is a field-terminable fiber optic connector designed to deliver permanent, high-performance connections. Engineered to support FTTx, outside-plant, and inside-plant environments, this connector allows technicians to create custom-length fiber terminations on-site.
By eliminating the need for pre-terminated cables, the Lynx-CustomFit(TM) system removes risks associated with excess slack, cable shorts, and logistical delays. The connector is compatible with both 250um and 900um fiber types and integrates directly with fusion splicing platforms to provide reliable signal integrity in high-density applications.
Key Features
-
High-Density Design
Optimized form factor allows for efficient use of space in crowded cabinets and enclosures. -
On-Site Customization
Enables creation of exact cable lengths to eliminate excess slack management. -
Cross-Compatibility
Designed to work with all standard SC, LC, FC, and ST connector systems. -
Low Optical Loss
Features low insertion and return loss characteristics for superior signal transmission. -
Universal Splicer Compatibility
Supports usage with Sumitomo fusion splicers as well as various other industry-standard brands. -
Standards Compliant
Meets Telcordia GR-326-CORE and GR-1081-CORE requirements for field performance.
Applications
- FTTx installations
- Outside plant fiber networks
- Inside plant cable management
- High-density data center cross-connects
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sumitomo Electric |
| Model | Lynx-CustomFit(TM) 2 |
| Part Number | LYNX3SCUPCSM250900 |
| Connector Type | SC |
| Polish | UPC |
| Fiber Type | Singlemode (SM) |
| Fiber Compatibility | 250um and 900um |
| Standards | Telcordia GR-326-CORE, GR-1081-CORE |
Frequently Asked Questions
Is this connector compatible with non-Sumitomo fusion splicers?
Yes, the Lynx-CustomFit(TM) 2 series is designed to be compatible with Sumitomo splicers and other industry-standard brands.
What fiber sizes does this connector support?
This specific model is compatible with both 250um and 900um singlemode fiber.
Are there minimum order requirements?
Yes, this product must be ordered in multiples of ten units.
Does this connector meet industry standards?
Yes, it is compliant with Telcordia GR-326-CORE and GR-1081-CORE standards.
Can I use this for outside plant applications?
Yes, the design is fully suitable for both outside-plant and inside-plant field termination requirements.
