Overview

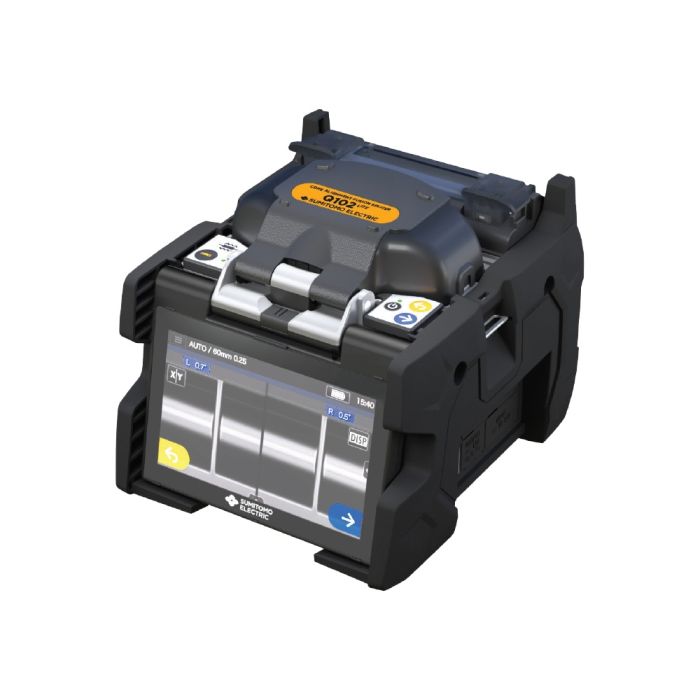

The Sumitomo Q102LITE-CORE is a high-performance, automatic adaptive core fusion splicer designed for field environments where speed and durability are essential. This compact and lightweight unit provides advanced splicing capabilities, enabling efficient fiber optic network installations and repairs.
Engineered for high-volume field operations, the Q102LITE reduces downtime with a rapid 6-second splice time in SM Quick Mode and a 15-second heat shrink cycle. It is built to maintain precision in harsh environmental conditions, ensuring consistent, high-quality splices for various fiber types.
Key Features
-
High-Speed Splicing
Features a 6-second splice time in SM Quick Mode to maximize productivity in the field. -
Fast Heat Shrink
Reduces cycle times with a 15-second heating process for protection sleeves. -
Compact Design
Lightweight and portable construction for easy handling in tight spaces and aerial applications. -
Field Toughness
Engineered with high environmental tolerance to perform reliably in demanding outdoor conditions. -
Included Precision Cleaver
Supplied with the FC-8R automatic rotating blade cleaver for consistent, accurate fiber ends. -
Versatile Fiber Handling
Comes with 250um, 900um, and loose buffer fiber holders for broad compatibility with standard fiber types.
Applications
- Fiber to the Home (FTTH) networks
- Outside plant construction and repair
- Data center fiber infrastructure
- Long-haul network installation
Package Contents
- Q102LITE-CORE Fusion Splicer
- FC-8R Precision Cleaver with Auto Rotating Blade
- Fiber Holders (250um, 900um, and Loose Buffer)
- Fiber Clamps
- Fiber Stripper (JR-M03)
- Fiber Protection Sleeves (1 pack)
- Spare Electrodes (ER-10)
- Battery Unit (BU-102)
- AC Interface/Battery Charger with Power Cord
- Shipping Case
- Fusion Cleaning Kit
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sumitomo Electric Lightwave |
| Splice Time (SM Quick) | 6 seconds |
| Heat Shrink Time | 15 seconds |
Frequently Asked Questions
What is the primary advantage of the Q102LITE-CORE?
The splicer offers enhanced speed with a 6-second splice time and 15-second heat cycle, making it ideal for high-efficiency field work.
Is the FC-8R cleaver included?
Yes, the kit comes complete with the FC-8R precision cleaver featuring an auto-rotating blade.
Does this kit include fiber holders?
Yes, the kit includes 250um, 900um, and loose buffer fiber holders to support various installation needs.
Can this be used in the field?
Yes, the unit is designed for field toughness and high environmental tolerance.
What is the purpose of the included BU-102?
The BU-102 is the battery unit that provides portable power for the fusion splicer.
