Overview

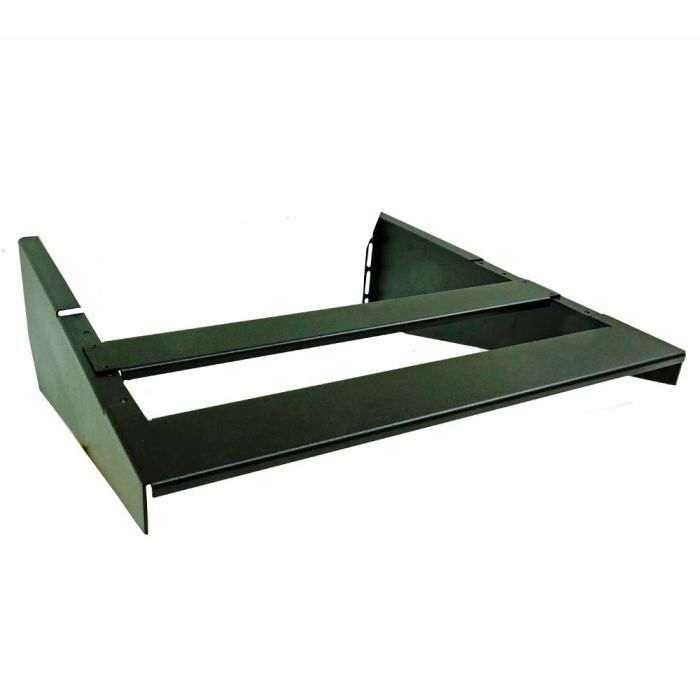

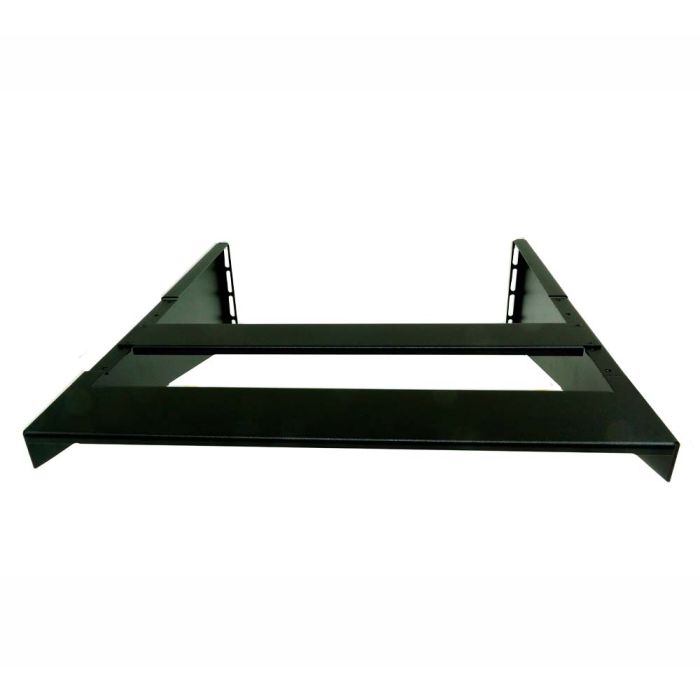

The Support Shelf for Fiber Rack Mount Equipment is an economical cantilever shelf designed to provide structural reinforcement for rack-mounted hardware. It is specifically engineered for use in standard 19-inch two-post free-standing racks to reduce mechanical fatigue on equipment mounting brackets.
By allowing heavy active equipment to be supported beyond simple flush-front mounting, this shelf helps stabilize components and protect hardware. Its design incorporates adjustable support crossbars, enabling it to accommodate various equipment sizes while maximizing rack density by allowing enclosures or additional gear to be mounted directly below the supported active equipment.
Key Features
-
Adjustable Support Crossbars
Features a fixed 2" (50mm) bar at 18.5"-21" and an additional adjustable bar at 12"-17" to support varying equipment depths. -
Weight Capacity
Rated to support equipment up to 40 lbs, providing a sturdy platform for heavier network hardware. -
Durable Construction
Manufactured from lightweight, high-strength aluminum with a black powder-coated finish for long-term environmental durability. -
Space Optimization
Mounts to the rear of rack rails, straddling the opening to allow for efficient vertical stacking of additional enclosures below active gear. -
Reduced Equipment Fatigue
Mitigates stress on front-mounted rack brackets, extending the longevity of hardware mounting points. -
Standard Compatibility
Designed specifically for 19-inch two-post free-standing racks commonly found in data centers and telecommunications closets.
Applications
- Data center rack equipment mounting
- Telecommunications distribution frames
- Server and switch support in two-post racks
- Fiber optic enclosure stabilization
Technical Specifications
| Specification | Value |
|---|---|
| Rack Compatibility | 19-inch two-post free-standing rack |
| Fixed Support Crossbar | 2" (50mm) at 18.5" to 21" |
| Adjustable Support Crossbar | 12" to 17" |
| Load Capacity | Up to 40 lbs |
| Material | Aluminum |
| Finish | Black powder-coat |
| Mounting Position | Rear of rack rails |
Frequently Asked Questions
What is the maximum weight this shelf can hold?
The support shelf is recommended for equipment weighing up to 40 lbs.
Will this fit a 4-post rack?
This shelf is specifically designed for 19-inch two-post free-standing racks.
Is the support bar adjustable?
Yes, it features a fixed crossbar at 18.5"-21" and an adjustable crossbar at 12"-17" for different equipment depths.
Where does the shelf mount?
The shelf mounts to the rear of the rack rails and straddles the rack opening.
What is the material of the shelf?
The unit is made from strong, lightweight aluminum with a black powder-coated finish.
