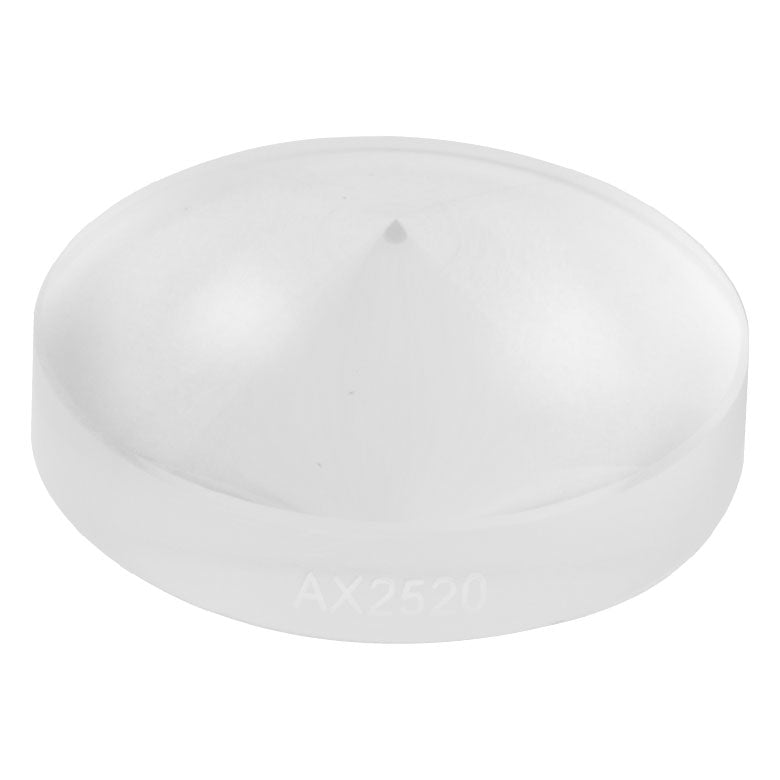

T-AX2520 - 20.0°, Uncoated UVFS, Ø1" (Ø25.4 mm) Axicon

Product Drawing

Features

• 1/2" and 1"  Diameters Available
• Physical Angles Available: 0.5°, 1.0°, 2.0°, 5.0°, 10.0°, 20.0°, and 40.0°
• Offered Uncoated or With an AR Coating
• Diameter Ø1" (Ø25.4 mm)
• Physical Angle (α) 20.0°
• Deflection Angle (ß) 10.0°
• Center Thickness (t_c) 9.6 mm
• Wavelength Range 185 nm - 2.1 µm
• Transmission  Curve
• Reference Drawing

Applications

• Laser Drilling/Optical Trepanning
• Optical Trapping
• Optical Coherence Tomography (OCT)
• Corneal Surgery
• Telescopes
