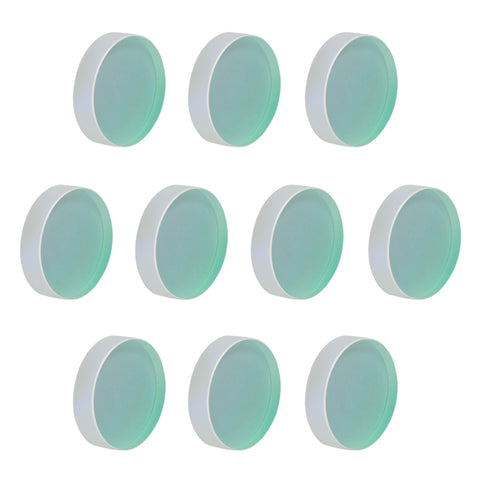

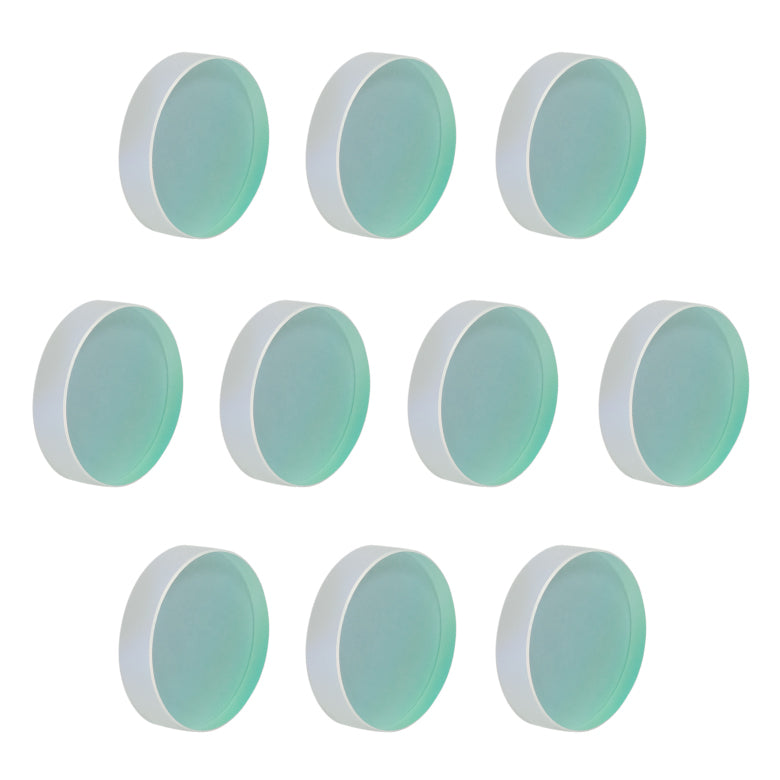

T-BB2-E03-10 - Ø2" Broadband Dielectric Mirror, 750 - 1100 nm, 10 Pack
T-BB2-E03-10 - Ø2" Broadband Dielectric Mirror, 750 - 1100 nm, 10 Pack
- Round Mirror Diameters: 7.0 mm, 1/2", 19.0 mm, 1", 2", 3", or 4"
- Square Mirror Edge Lengths: 1/2", 1", or 2"
- Four Broadband Coating Options
- 350 - 400 nm (Not Stocked with Ø7.0 mm, Ø3", Ø4", or Square Substrates)
- 400 - 750 nm
- 750 - 1100 nm
- 1280 - 1600 nm (Not Stocked with Ø3", Ø4", or Square Substrates)
- Fused Silica Substrates
- Ravg > 99% for S- and P- Polarization for Angles of Incidence from 0 to 45°
- Designed for CW and Nanosecond Lasers
| Coating Designation | Damage Threshold | |
| -E03 | Pulse | 0.205 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.166 mm) 1 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.133 mm) 0.5 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.433 mm) |
| CWa,b | 10 kW/cm (1070 nm, Ø0.971 mm) |
