T-BBD05-E03 - Ø1/2" Broadband Dielectric D-Shaped Mirror, 750 - 1100 nm
T-BBD05-E03 - Ø1/2" Broadband Dielectric D-Shaped Mirror, 750 - 1100 nm
- Choose from Nine Coatings:
- UV-Enhanced Aluminum: 250 - 450 nm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1000 nm
- Protected Gold: 800 nm - 20 µm
- MIR-Enhanced Gold: 2 μm - 20 μm
- -E01 Broadband Dielectric Coating: 350 - 400 nm
- -E02 Broadband Dielectric Coating: 400 - 750 nm
- -E03 Broadband Dielectric Coating: 750 - 1100 nm
- -E04 Broadband Dielectric Coating: 1280 - 1600 nm
- Choose from Ø1/2" or Ø1" Versions
- Ideal for Use with Closely Spaced Beams
- Reflective Coating Beveled 0.1 mm at Straight Edge
| Coating | -E03 Coating | |
|---|---|---|
| Item # | BBD05-E03 | BBD1-E03 |
| Coating Range | 750 - 1100 nm | |
| Diameter | Ø1/2" | Ø1" |
| Diameter Tolerance | +0.0/-0.2 mm | |
| Thickness | 6.0 mm | |
| Substrate | Fused Silica | |
| Front Surface Flatness | λ/10 @ 633 nm | |
| Surface Quality | 10-5 Scratch-Dig | |
| Clear Aperture | >90% of Diameter | |
|

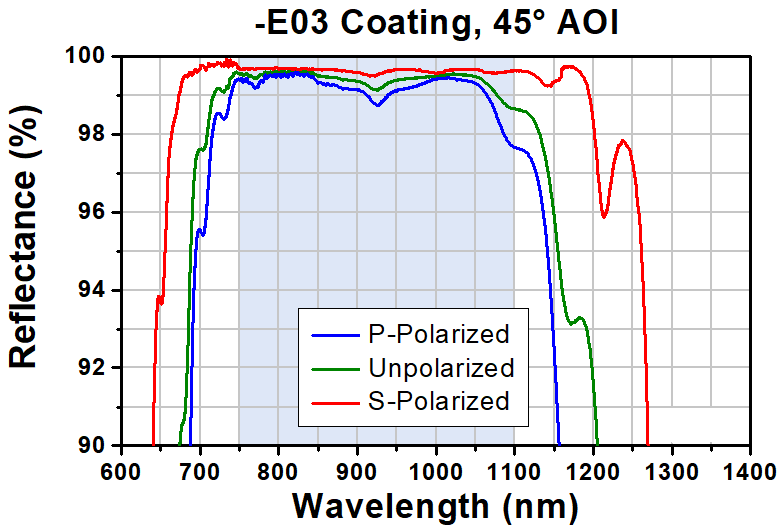

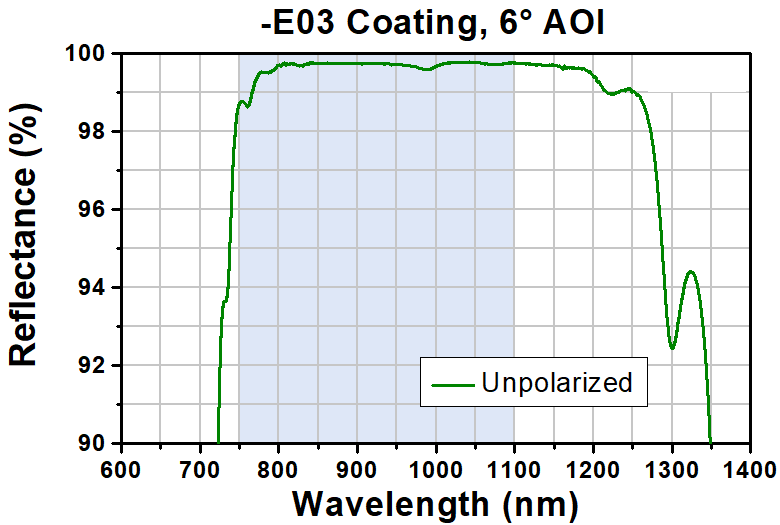

Reflectance (P and S Polarizations for 0° - 45°) |
Ravg > 99% from 750 - 1100 nm | |
| Parallelism | ≤5 arcmin | |
| Damage Threshold (Pulse) | 0.205 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.166 mm), 1 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.133 mm), 0.5 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.433 mm) |
|
| Damage Threshold (CW) | 10 kW/cm (1070 nm, Ø0.971 mm) | |
