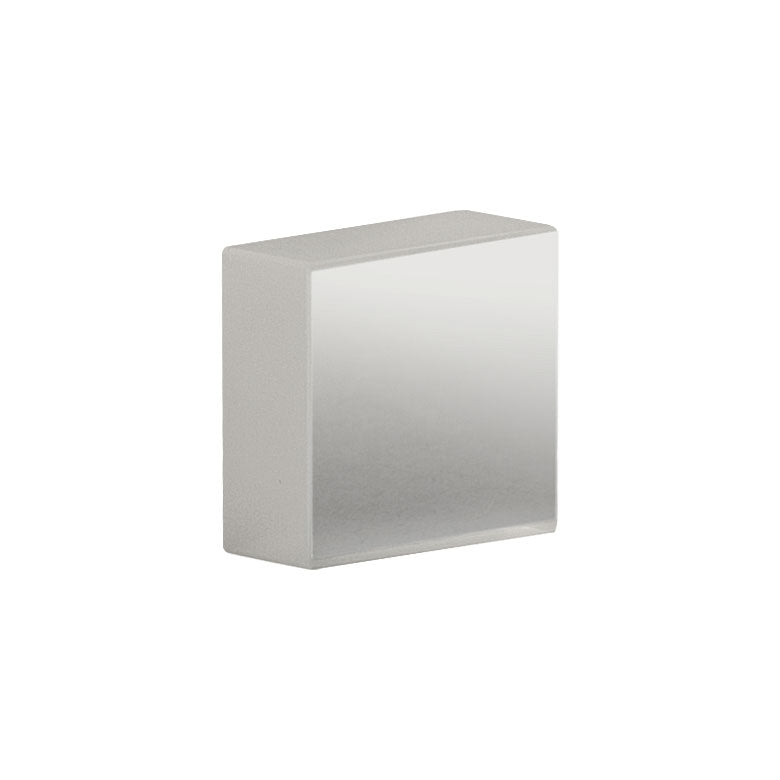

T-BBSQ05-E02 - 1/2" x 1/2" Broadband Dielectric Mirror, 400 - 750 nm

Product Drawing

• Round Mirror Diameters: 7.0 mm, 1/2", 19.0 mm, 1", 2", 3", or 4"
• Square Mirror Edge Lengths: 1/2", 1", or 2"
• Four Broadband Coating Options
• 350 - 400 nm (Not Stocked with Ø7.0 mm, Ø3", Ø4", or Square Substrates)
• 400 - 750 nm
• 750 - 1100 nm
• 1280 - 1600 nm (Not Stocked with Ø3", Ø4", or Square Substrates)
• Fused Silica Substrates
• R_avg > 99% for S- and P- Polarization for Angles of Incidence from 0 to 45°
• Designed for CW and Nanosecond Lasers
• Type Pulsed
• Damage Threshold 0.25 J/cm² (532 nm, 10 ns, 10 Hz, Ø0.803 mm)
• 550 W/cm (532 nm, Ø1.000 mm) Type CW^a,b
