T-BBSQ2-E03 - 2" x 2" Broadband Dielectric Mirror, 750 - 1100 nm
T-BBSQ2-E03 - 2" x 2" Broadband Dielectric Mirror, 750 - 1100 nm

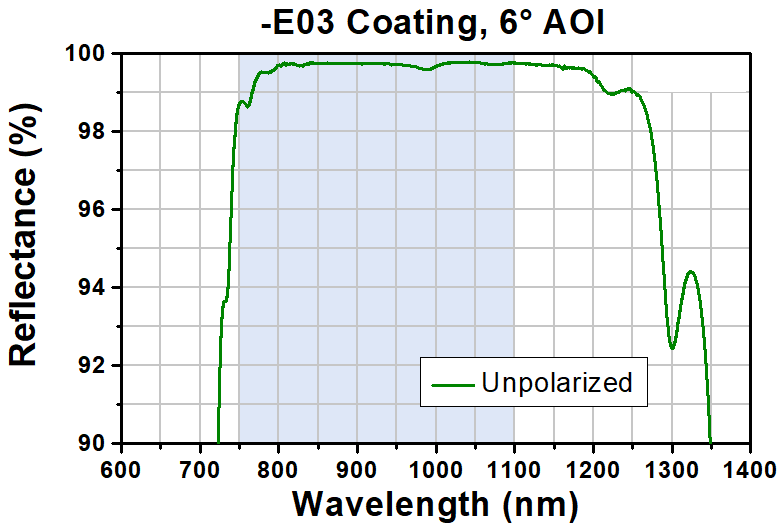

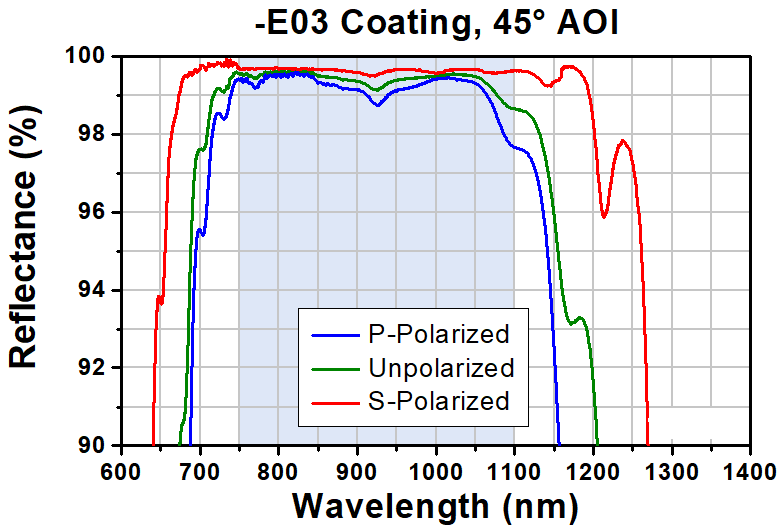

Coating Specifications
| -E03 | Pulse | 0.205 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.166 mm) 1 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.133 mm) 0.5 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.433 mm) |
| CWa,b | 10 kW/cm (1070 nm, Ø0.971 mm) |
| Specifications | ||
|---|---|---|
| Material | Fused Silica | |
| Surface Flatness | λ/10 at 633 nm | |
| Surface Quality | 10-5 Scratch-Dig | |
| Back Surface | Fine Ground | |
| Clear Aperture | >85% of Diameter (Round) >85% of Dimension (Square) |
|
| Parallelism | ≤3 arcmin | |
| Thickness | Ø7.0 mm Optics | 2.0 mm (0.08") |
| Ø1/2" Optics | 6.0 mm (0.24") | |
| 1/2" x 1/2" Optics | 6.0 mm (0.24") | |
| Ø19 mm Optics | 6.0 mm (0.24") | |
| Ø1" Optics | 6.0 mm (0.24") | |
| 1" x 1" Optics | 6.0 mm (0.24") | |
| Ø2" Optics | 12.0 mm (0.47") | |
| 2" x 2" Optics | 6.0 mm (0.24") | |
| Ø3" Optics | 19.1 mm (0.75") | |
| Ø4" Optics | 19.1 mm (0.75") | |
| Thickness Tolerance | ±0.2 mm | |
| Diameter Tolerance | +0.0 mm / -0.1 mm | |
