T-BDY12U-2000 - YVO4 Beam Displacer, 1.2 mm Beam Separation, Unmounted, 2000 nm V Coating
T-BDY12U-2000 - YVO4 Beam Displacer, 1.2 mm Beam Separation, Unmounted, 2000 nm V Coating
- Unmounted YVO4 Beam Displacers
- Produces Two Orthogonally Polarized Output Beams
- Available Uncoated or V-Coated at 2000 nm

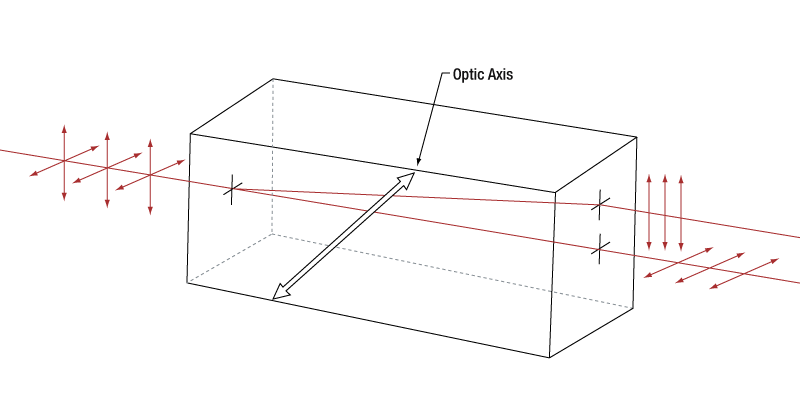

These Unmounted Beam Splitters are compact [0.47" x 0.24" x 0.16" (12.0 mm x 6.0 mm x 4.0 mm)], making them ideal for use in OEM applications. They split an input beam into two output beams with orthogonal polarization.
- Two Orthogonally Polarized Output Beams
- 1.2 mm Beam Displacement at 2000 nm
- Available Uncoated or V-Coated at 2000 nm
- Outputs Beams Parallel within 30 arcsec
- Transparent from 488 nm to 3.4 μm
- Available Unmounted or Mounted in a Ø1/2" Housing
| Item # | T-BDY12(U)-2000 |
|---|---|
| Substrate Spectral Range (Click for Graph) |
488 nm - 3.4 µm |

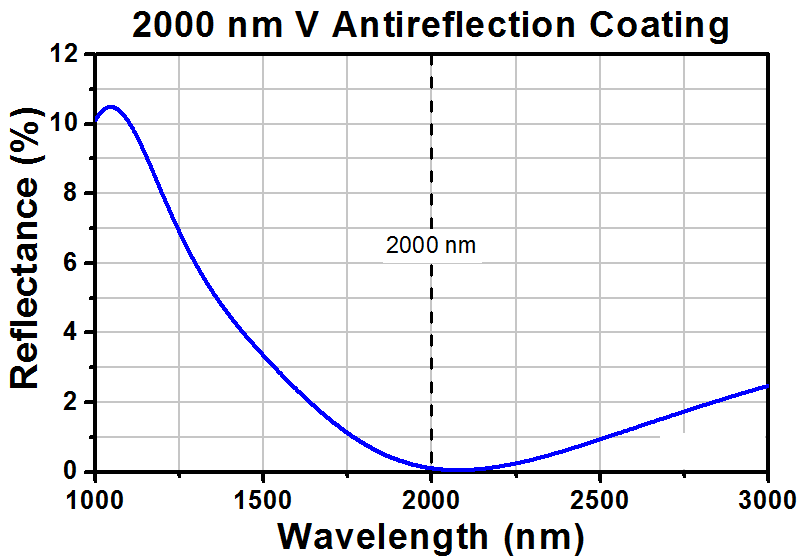

| AR Coating (Click for Graph) | 2000 nm V Coating |
| AR Coating Reflectance (0° AOI) | R < 0.25% at 2000 nm |
| Beam Separation (@ 2000 nm) |
1.2 mm |
| Clear Aperture | >3 mm x 5 mm Ellipse |
| Beam Deviation | <30 arcsec Between Output Beams |
| Surface Flatness | λ/10 at 633 nm |
| Surface Quality | 40-20 Scratch-Dig |
