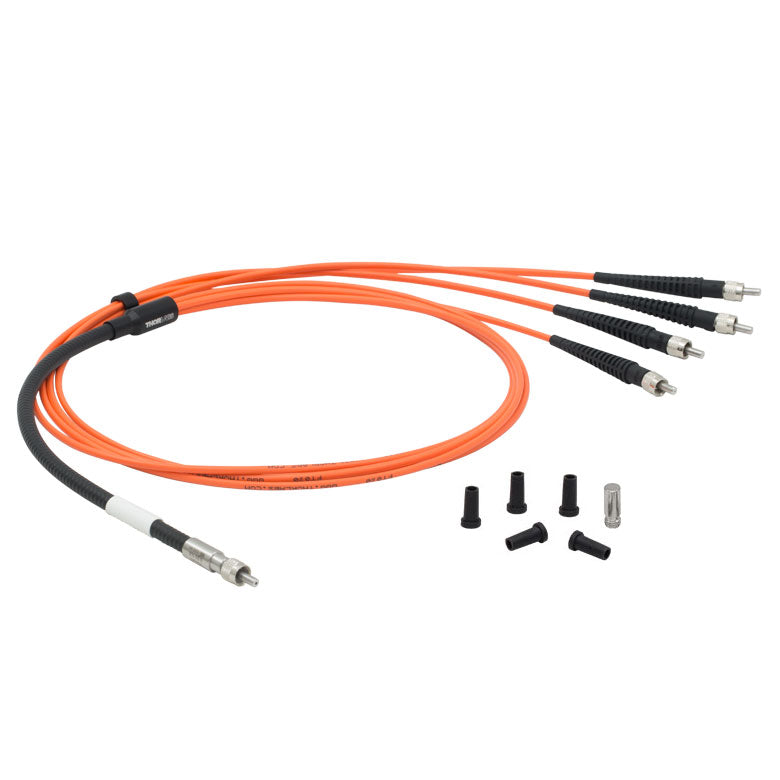

T-BF42LS01 - 1-to-4 Fan-Out Bundle, 200 µm Core, Low OH, SMA, Round Common End, 1 m Long
T-BF42LS01 - 1-to-4 Fan-Out Bundle, 200 µm Core, Low OH, SMA, Round Common End, 1 m Long
- Fan-Out Bundles of 4 Multimode Fibers
- Round or Linear Common End Configuration
- SMA905 Connectors on Each End
- High-OH and Low-OH Versions
- 1 m Long from End to End
- Custom Versions Available
- Core Diameter 200 µm
- Common End Configuration Round
- Common End Aperture Ø0.56 mm
- Fill Factor 51.0%
- Hydroxyl Content Low OH
- Wavelength Range 400 - 2200 nm
- NA 0.39
- # of Fibers 4
- Fiber T-FT200EMT
- Fiber Attenuation Plot
- Short-Term Bend Radius 21 mm
- Long-Term Bend Radius 42 mm
- Total Length 1 +0.075/ -0.0 m
- Common Leg Length 0.25 ± 0.03 m
- Junction Length 1.25" (31.8 mm)
- Max Breakout Length 0.71 m
- Connectors SMA905
