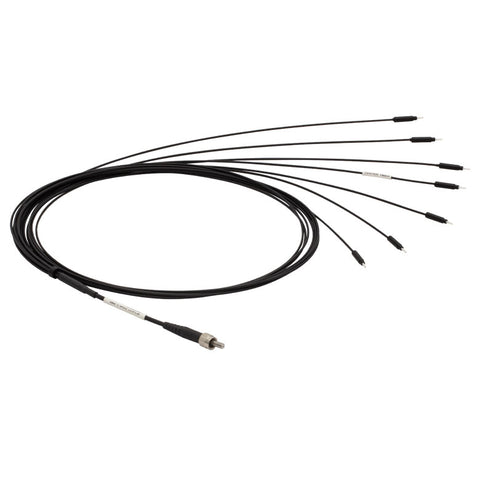

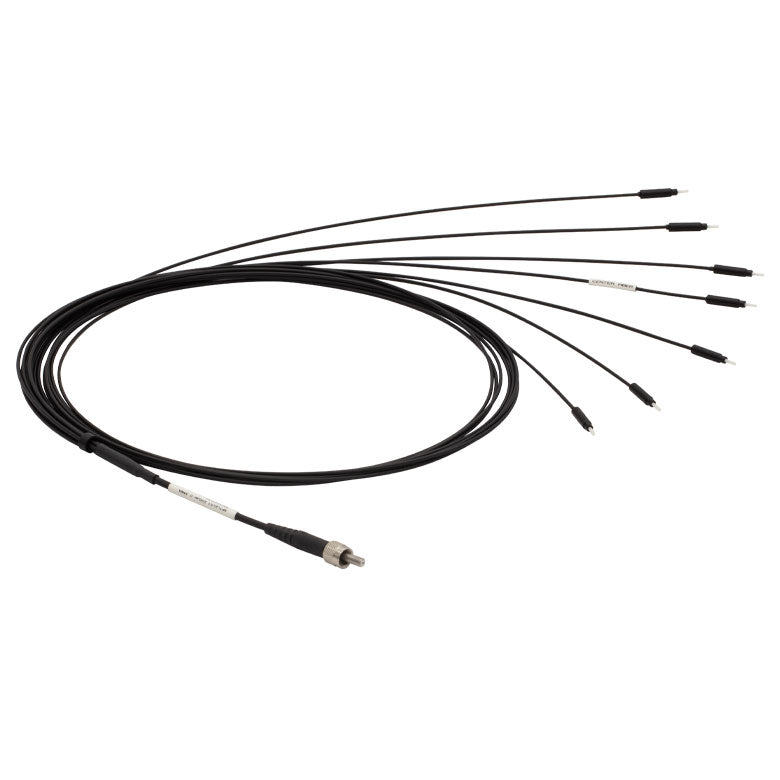

T-BF7L1LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.22 NA, High OH, SMA to Ø1.25 mm Ferrules, 1 m Long
T-BF7L1LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.22 NA, High OH, SMA to Ø1.25 mm Ferrules, 1 m Long

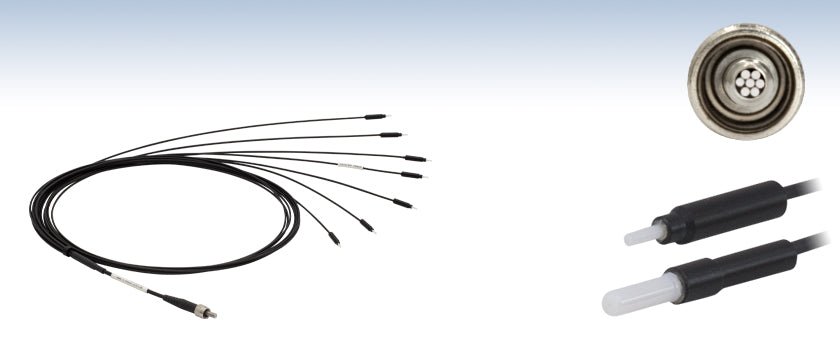

- 1 m Long Fan-Out Bundles of 7 Multimode Fibers
- Choose from Two Ferrule Sizes for Specimen Side: Ø1.25 mm or Ø2.5 mm
- SMA905 Connector on the Non-Specimen Side
- Ø200 µm Core Multimode Fiber with a 0.22 NA or 0.39 NA

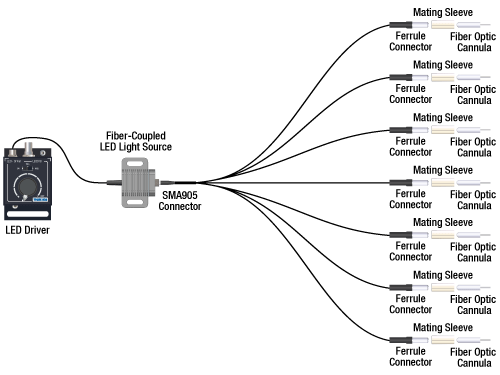

- Ferrule Ends Integrate with Implantable Fiber Optic Cannulae
- Heat-Shrink Tubing Minimizes the Pressure on the Specimen
- Ferrule Size Ø1.25 mm
- Common Connector SMA905
- Fiber Type T-FG200UCC
- # of Fibers 7
- Hydroxyl Content High OH

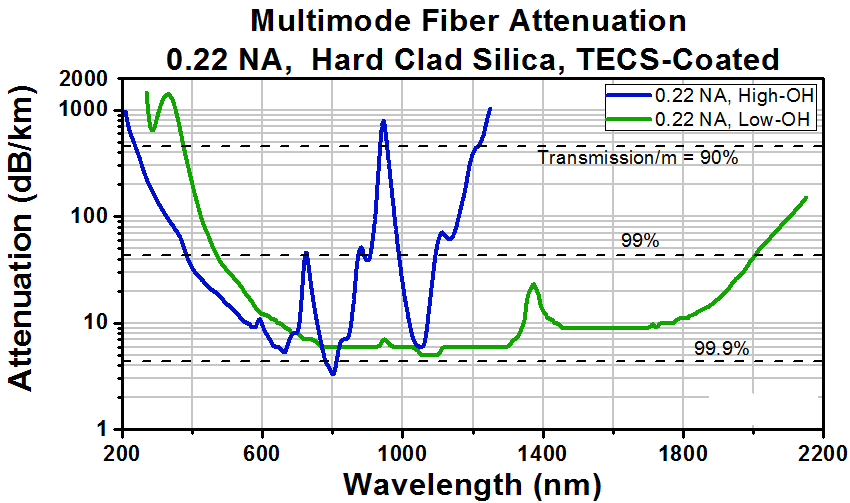

- Wavelength Range (Click for Plot) 250-1200 nm
- Core Diameter 200 ± 8 µm
- Cladding Diameter 240 ± 5 µm
- NA 0.22 ± 0.02
