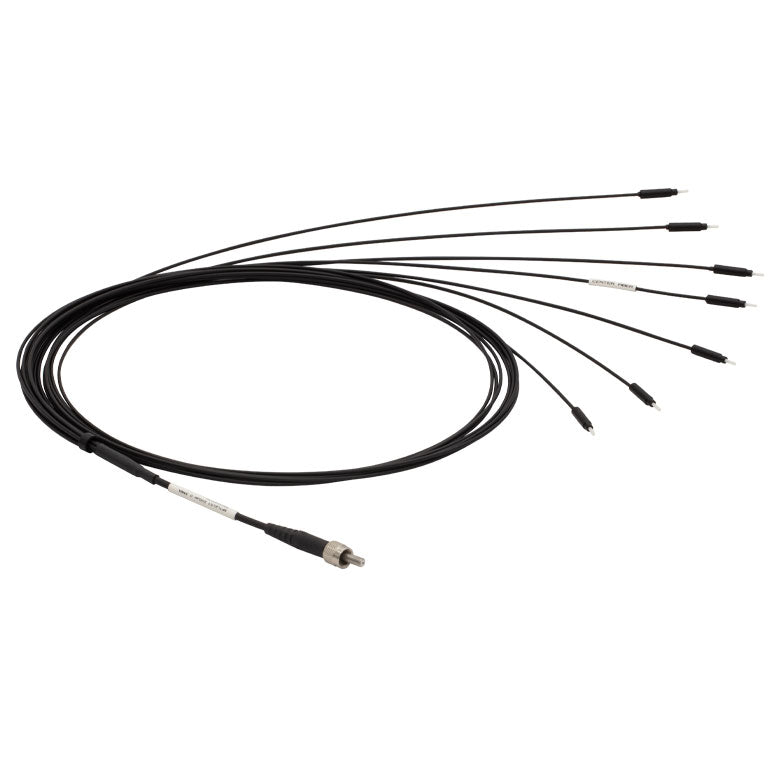

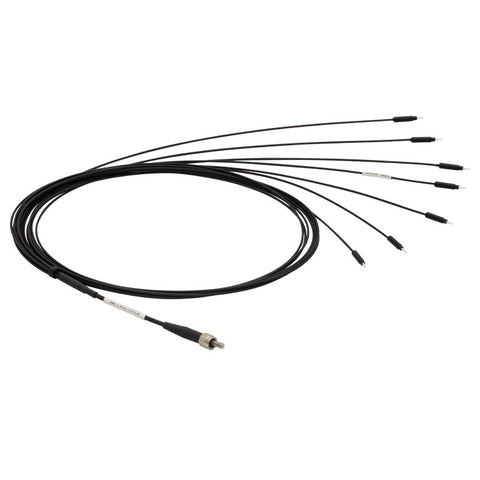

T-BF7L2LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.39 NA, Low OH, SMA to Ø1.25 mm Ferrules, 1 m Long
T-BF7L2LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.39 NA, Low OH, SMA to Ø1.25 mm Ferrules, 1 m Long
- 1 m Long Fan-Out Bundles of 7 Multimode Fibers
- Choose from Two Ferrule Sizes for Specimen Side: Ø1.25 mm or Ø2.5 mm
- SMA905 Connector on the Non-Specimen Side
- Ø200 µm Core Multimode Fiber with a 0.22 NA or 0.39 NA
- Ferrule Size Ø1.25 mm
- Common Connector SMA905
- Fiber Type FT200EMT
- # of Fibers 7
- Hydroxyl Content LOW OH
- Wavelength Range (Click for Plot)
- Core Diameter 200 ± 5 μm
-
Cladding Diameter 225 ± 5 μm
- Coating Diameter -
- NA 0.39
- CFMC22 Ceramic and CFM22 Stainless Steel
- Max Core Offset 5 µm
- Bend Radius (Short Term / Long Term) 21 mm / 42 mm
- Tubing Diameter ~Ø1.4 mm
- Connectors SMA905 to Ferrule

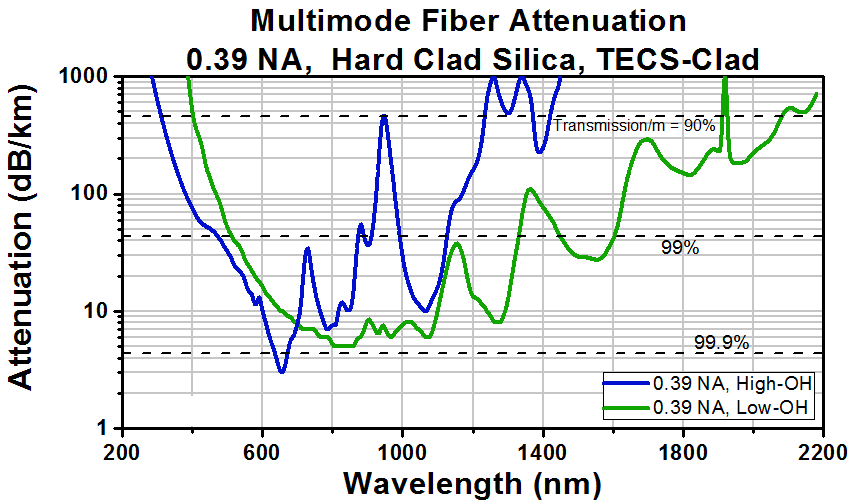

- Wavelength Range (Click for Plot) 400 - 2200 nm
- Core Diameter 200 ± 5 µm
- Cladding Diameter 225 ± 5 µm
