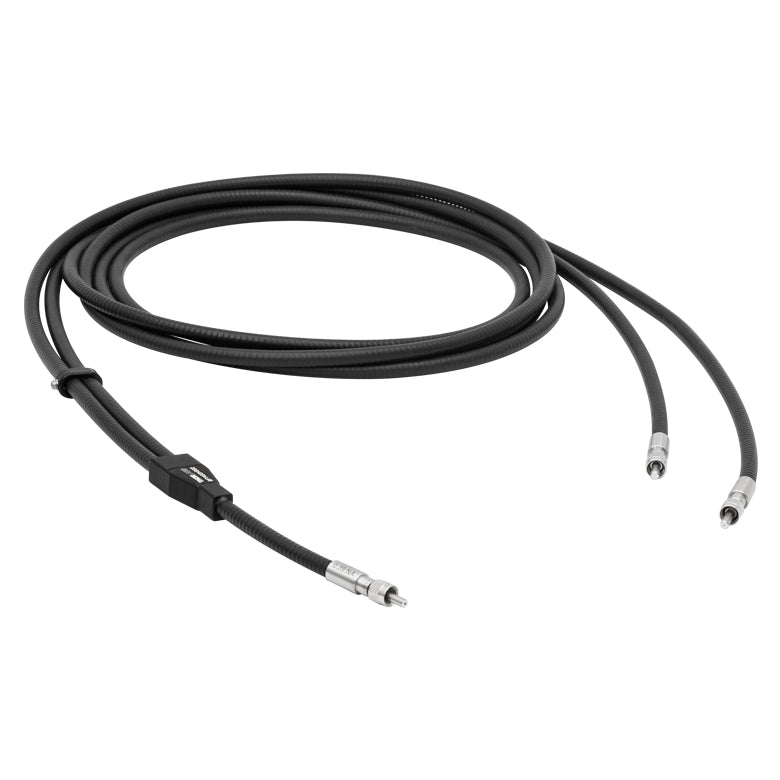

T-BFY1000HS02 - Bifurcated Fiber Bundle, Ø1000 µm, High OH, SMA905, 2 m
T-BFY1000HS02 - Bifurcated Fiber Bundle, Ø1000 µm, High OH, SMA905, 2 m
- 250 - 1200 nm or 300 - 1200 nm Wavelength Range (See Table Below)
- SMA905 or FC/PC 2.0 mm Narrow Key Connectors Terminate All Ends
- 2 m Total Length from Common End to Split Ends
- High-Quality FT061PS Ø6.1 mm Stainless Steel Tubing with Black Plastic Sheath
- Wavelength Range 300 - 1200 nm
- Fiber Item # FT1000UMT
- # of Fibers 2
- Core Diameter 1000 ± 15 µm
- Cladding Diameter 1035 ± 15 µm
- Coating Diameter 1400 ± 50 µm
- NA 0.39
- Min Bend Radius (Short Term / Long Term) 69 / 138 mm

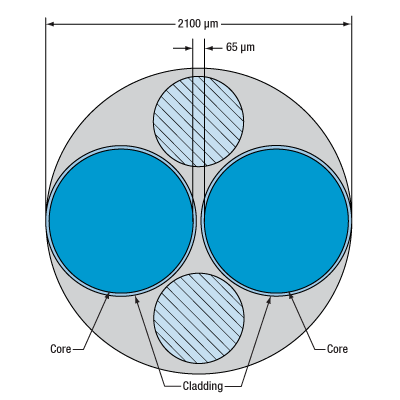

- Common End Face Drawing
- Connector Material SMA905 Stainless Steel
