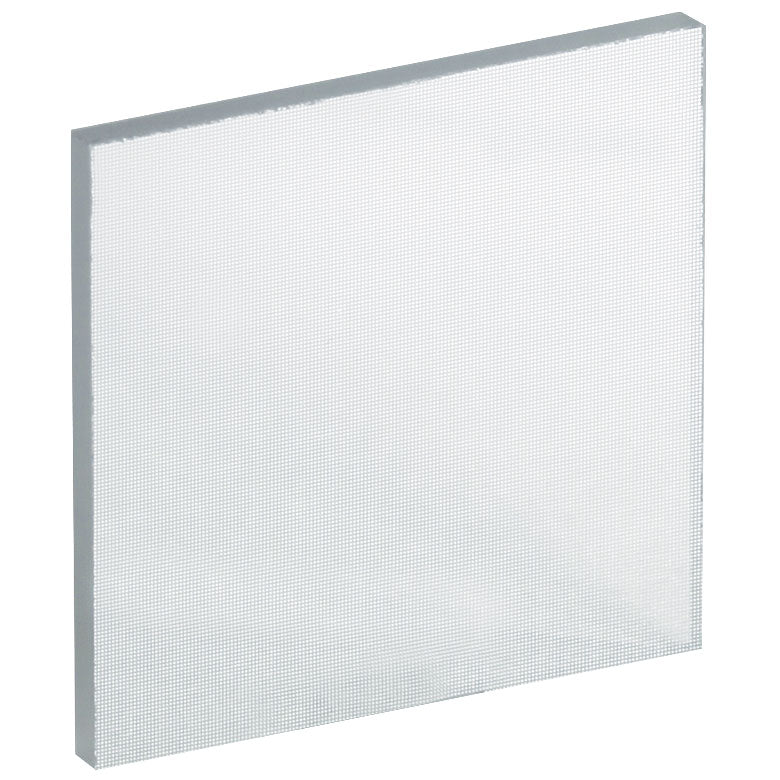

T-BPD254S-G - Polka Dot Beamsplitter, 1" x 1", B270 Glass

Fosco Connect Part No.: T-BPD254S-G

  • $ 185.00 or



T-BPD254S-G - Polka Dot Beamsplitter, 1" x 1", B270 Glass

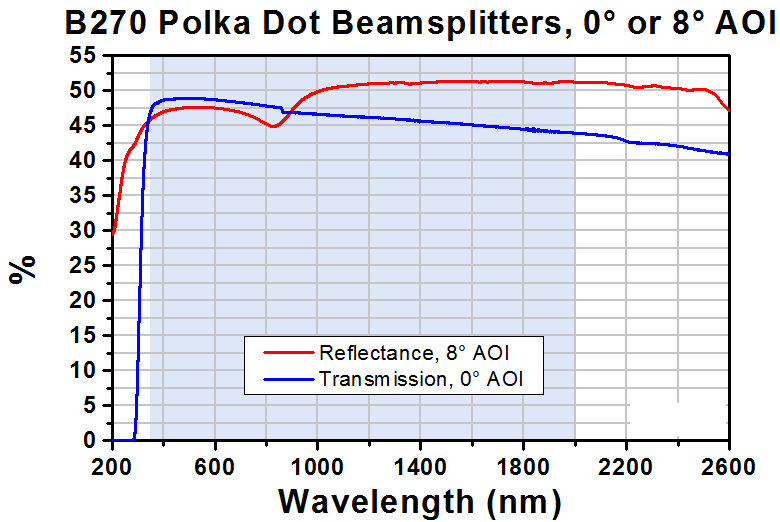

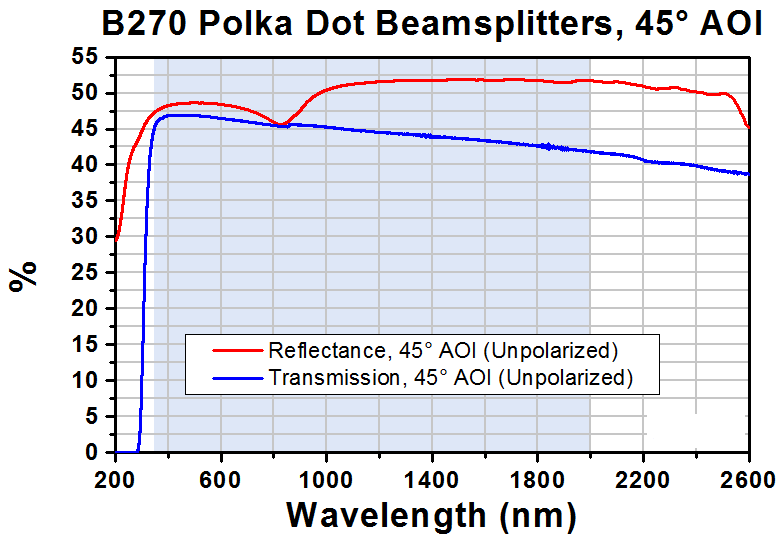

These Polka Dot Beamsplitters are made from B270 glass and provide high transmission over the 350 nm - 2.0 µm spectral range. They can be used from 0 to 45° AOI with only negligible changes to the reflected and transmitted intensity. Light should be incident on the aluminum-coated side to maximize the reflected intensity.

Product Drawing

Specifications
Available Sizes Ø1", Ø2", or 1" Square
Beamsplitting Ratio 50% ± 5%
Minimum Beam Diameter
for 50/50 Split
2 mm
Material B270
Wavelength Range 350 nm - 2.0 µm
Coating Pattern Square-Coated Apertures
0.0040" (100 µm) Sides, 0.0022" (56 µm) Spacing
Clear Aperture >90% Diameter (Round Optics)
>90% Length and Height (Square Optics)
Thickness 1.5 mm (Nominal)
Dimensional Tolerance +0.0 / -0.5 mm
Angle of Incidence 0 to 45°
