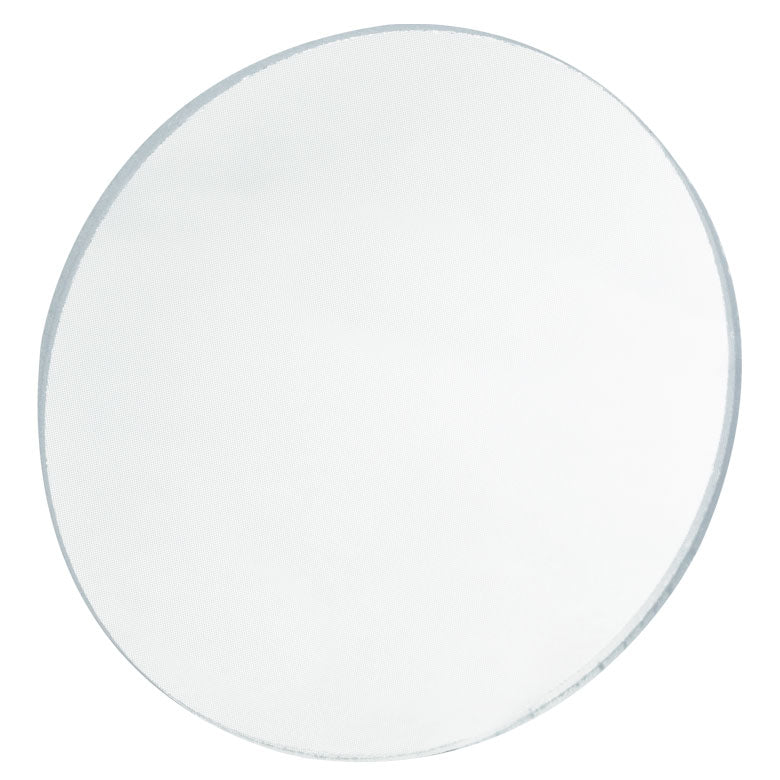

T-BPD508-G - Polka Dot Beamsplitter, Ø2", B270 Glass
T-BPD508-G - Polka Dot Beamsplitter, Ø2", B270 Glass

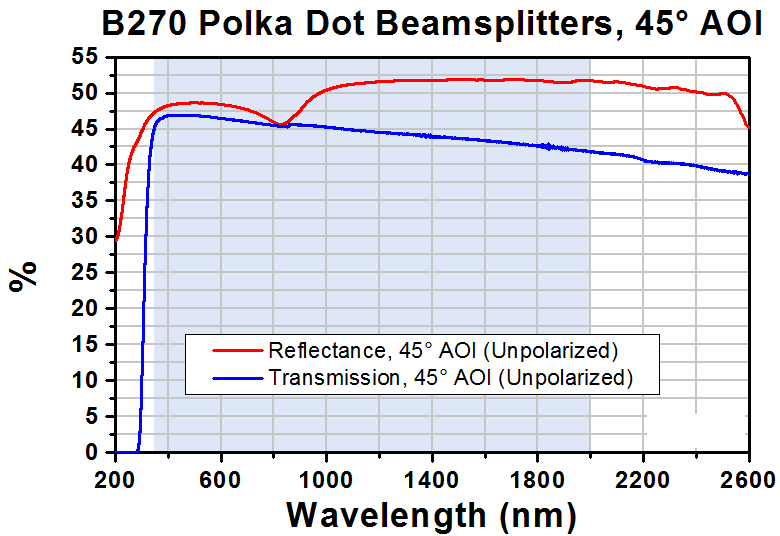

These Polka Dot Beamsplitters are made from B270 glass and provide high transmission over the 350 nm - 2.0 µm spectral range. They can be used from 0 to 45° AOI with only negligible changes to the reflected and transmitted intensity. Light should be incident on the aluminum-coated side to maximize the reflected intensity.
| Specifications | |
|---|---|
| Available Sizes | Ø1", Ø2", or 1" Square |
| Beamsplitting Ratio | 50% ± 5% |
| Minimum Beam Diameter for 50/50 Split |
2 mm |
| Material | B270 |
| Wavelength Range | 350 nm - 2.0 µm |
| Coating Pattern | Square-Coated Apertures 0.0040" (100 µm) Sides, 0.0022" (56 µm) Spacing |
| Clear Aperture | >90% Diameter (Round Optics) >90% Length and Height (Square Optics) |
| Thickness | 1.5 mm (Nominal) |
| Dimensional Tolerance | +0.0 / -0.5 mm |
| Angle of Incidence | 0 to 45° |
