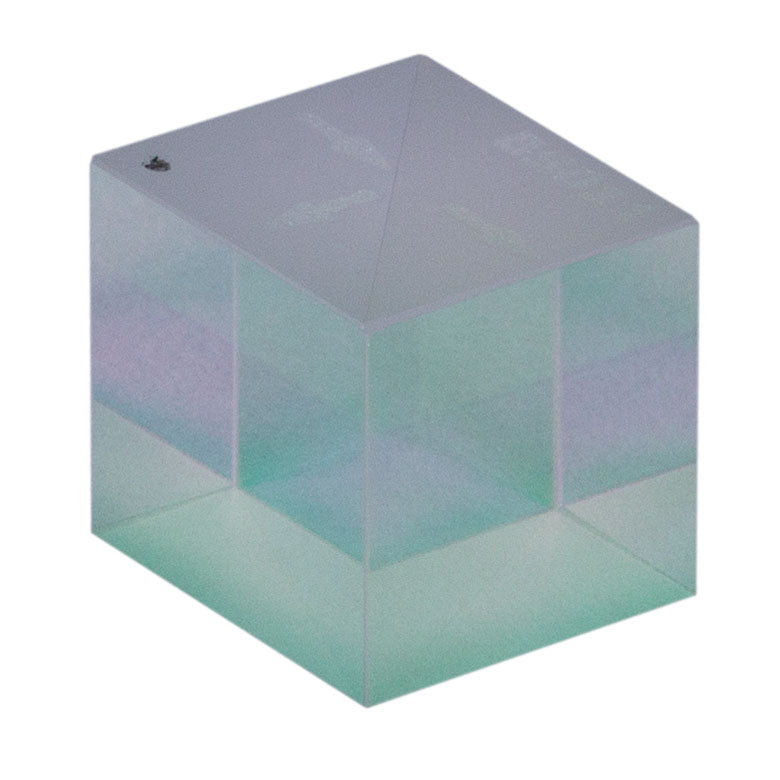

T-BS011 - 50:50 Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 10 mm
T-BS011 - 50:50 Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 10 mm
- Broadband AR-Coated Faces for 700 - 1100 nm
- Broadband Beamsplitter Coating on Internal Diagonal Surface
- 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
- Sizes from 5 mm to 2" (See Below for Details)
- N-BK7 Substrate
- Size 10 mm Cube
|
Damage Threshold Specifications |
||
|---|---|---|
| Split Ratio | Laser Type | Damage Threshold |
| 50:50 | Pulse | 0.25 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.166 mm) |
| CW |
10 W/cm (1070 nm, Ø1.012 mm) The power density of your beam should be calculated in terms of W/cm |
|
| Item # | T-BS011 |
|---|---|
| Cube Side Length | 10 mm |
| Clear Aperture | >8.0 x 8.0 mm |
| Transmitted Wavefront Errora |
<λ/4 |
| Transmitted Beam Deviation | 0° ± 5 arcmin |
| Overall Performanceb |
Tabs = 47 ± 10%, Rabs = 47 ± 10%, and Tabs + Rabs > 90%, |Ts - Tp| < 10% and |Rs - Rp| < 10% |
| Damage Threshold |
Pulsed: 0.25 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.166 mm) CWc: 10 W/cm (1070 nm, Ø1.012 mm) |
| General Specifications | ||
|---|---|---|
| Wavelength Range | 700 - 1100 nm | |
|
AR Coating (All Four Surfaces, Click for Plot) |
Ravg < 0.5% at 0° AOI from 700 - 1100 nm |
|
| Substrate Material | N-BK7 | |
| Dimensional Tolerance | +0.0 / -0.2 mm | |
| Reflected Beam Deviation | 90° ± 5 arcmin | |
| Surface Quality | 40-20 Scratch-Dig | |
