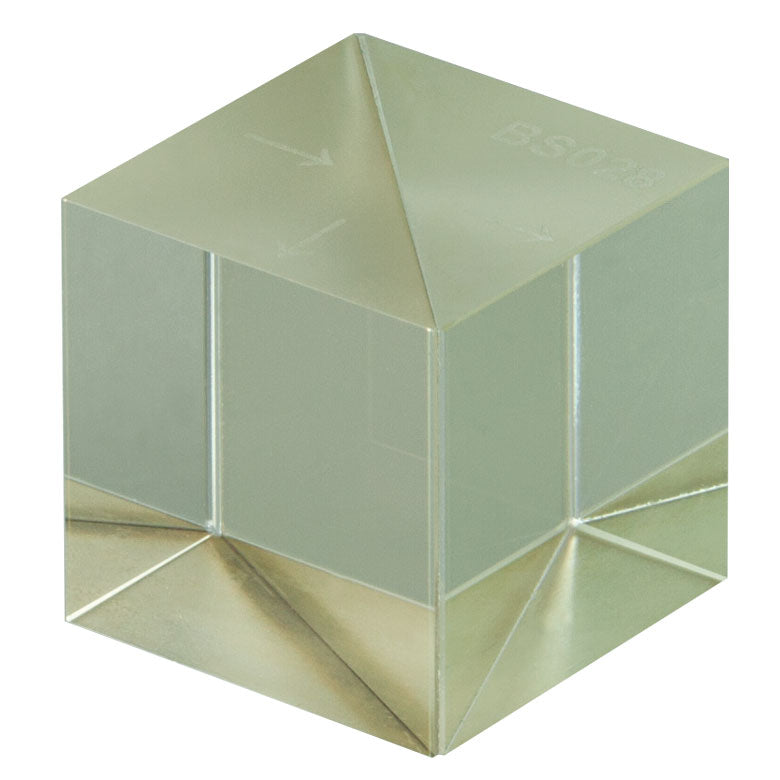

T-BS028 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 1"

Fosco Connect Part No.: T-BS028

  • $ 410.00 or



T-BS028 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 1"

Product Drawing

  • Broadband AR-Coated Faces for 400 - 700 nm
  • Broadband Beamsplitter Coating on Internal Diagonal Surface
  • 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
  • Sizes from 5 mm to 2" (See Below for Details)
  • N-BK7 Substrate
  • Size 1" (25.4 mm) Cube
  • Transmitted Wavefront Error (@ 633 nm) <λ/4
  • Transmitted Beam Deviation 0° ± 5 arcmin
General Specifications
Wavelength Range  400 - 700 nm
AR Coating
(All Four Surfaces, Click for Plot)
 Ravg < 0.5% at 0° AOI
from 400 - 700 nm
Substrate Material N-BK7
Dimensional Tolerance  +0.0 / -0.2 mm
Reflected Beam Deviation  90° ± 5 arcmin
Surface Quality  40-20 Scratch-Dig



Item # T-BS028
Cube Side Length 1" (25.4 mm)
Clear Aperture >20.3 x 20.3 mm
Transmitted Wavefront Errora
<λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

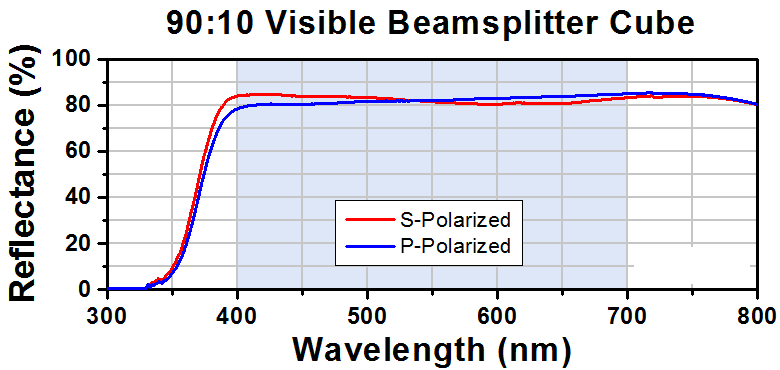

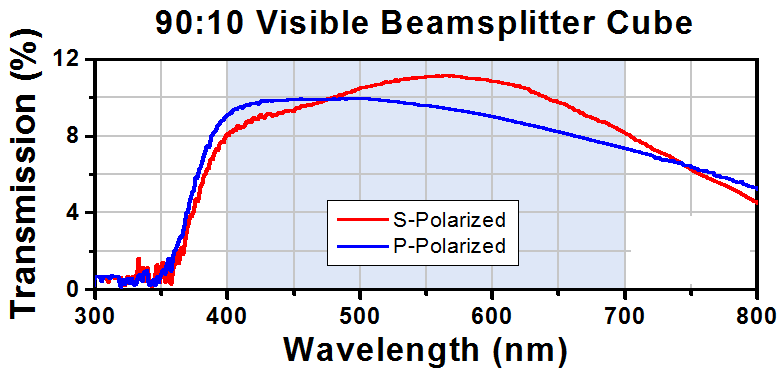

Overall Performanceb Tabs = 7 +10/-5%, Rabs= 87 +10/-30%, and Tabs + Rabs > 70% (400 - 550 nm)
Tabs = 7 +10/-5%, Rabs= 87 ± 10%, and Tabs + Rabs > 85% (550 - 700 nm)
|Ts - Tp| < 10% and |Rs - Rp| < 10% (400 - 700 nm)
