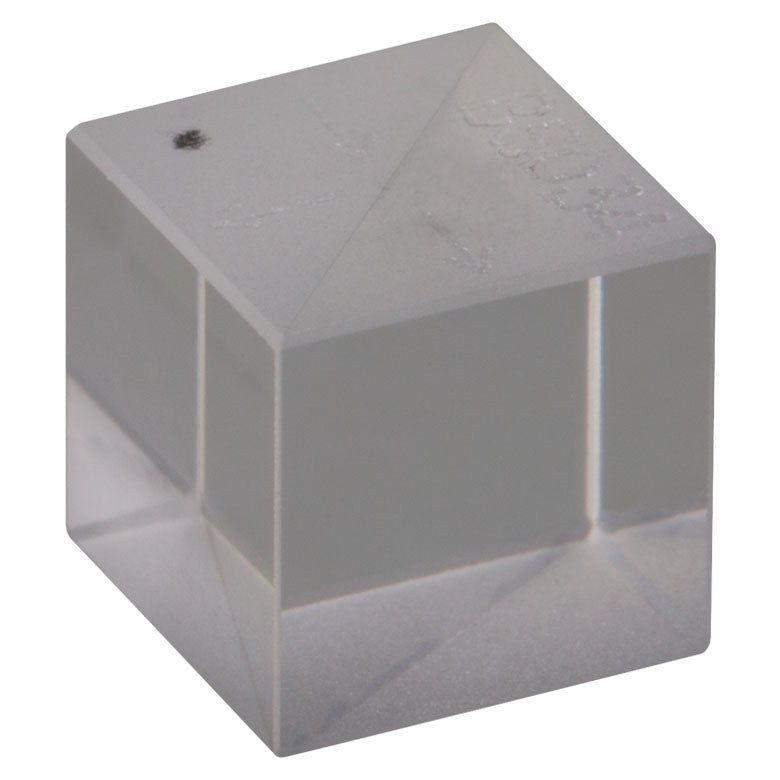

T-BS034 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 5 mm
T-BS034 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 5 mm
- Broadband AR-Coated Faces for 400 - 700 nm
- Broadband Beamsplitter Coating on Internal Diagonal Surface
- 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
- Sizes from 5 mm to 2" (See Below for Details)
- N-BK7 Substrate
| General Specifications | ||
|---|---|---|
| Wavelength Range | 400 - 700 nm | |
|
AR Coating (All Four Surfaces, Click for Plot) |
Ravg < 0.5% at 0° AOI from 400 - 700 nm |
|
| Substrate Material | N-BK7 | |
| Dimensional Tolerance | +0.0 / -0.2 mm | |
| Reflected Beam Deviation | 90° ± 5 arcmin | |
| Surface Quality | 40-20 Scratch-Dig | |
| Item # | T-BS034 |
|---|---|
| Cube Side Length | 5 mm |
| Clear Aperture | >3.5 x 3.5 mm |
|
Transmitted Wavefront Error |
<λ/4 |
| Transmitted Beam Deviation | 0° ± 5 arcmin |
|

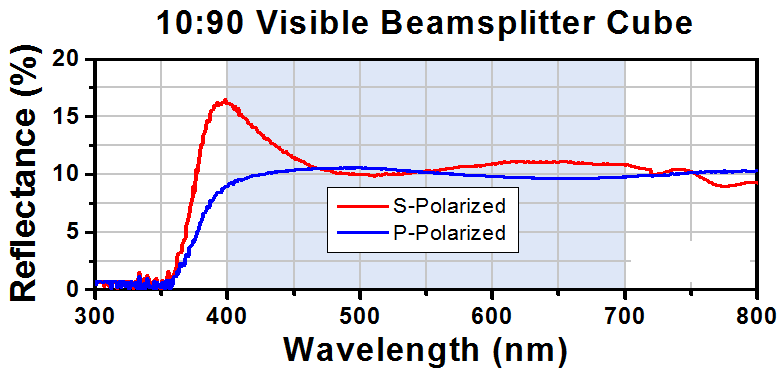

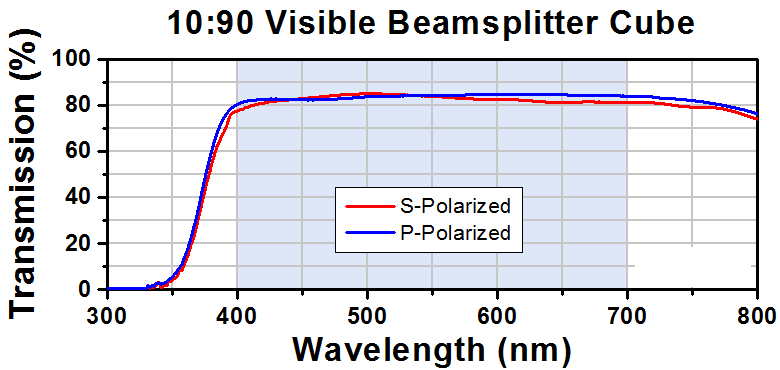

Overall Performance |
Tabs = 87 ± 10%, Rabs = 7 +10/-7%, Tabs + Rabs > 85%, |Ts - Tp| < 10%, and |Rs - Rp| < 10% |
