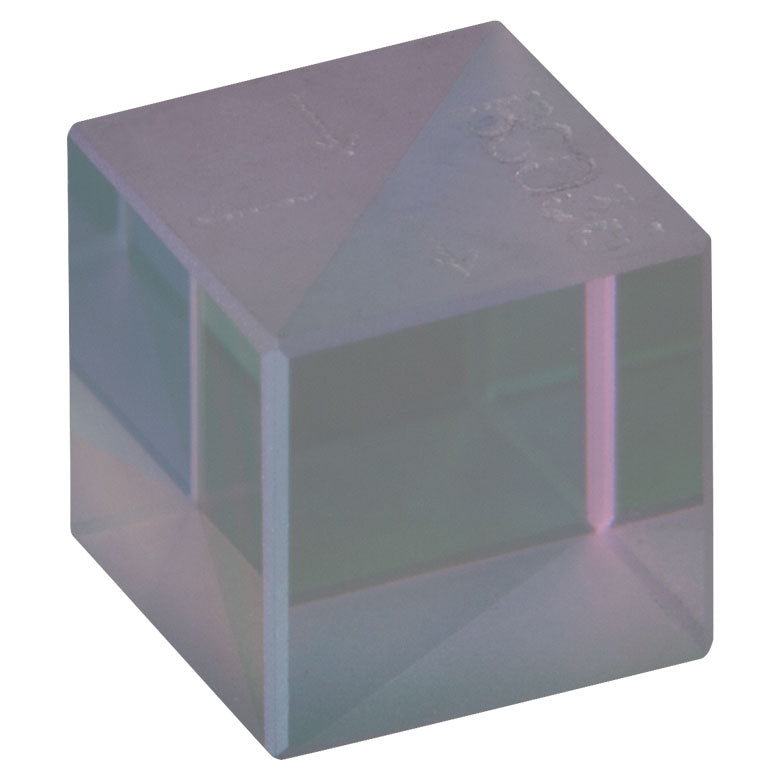

T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm
T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm



T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm

Fosco Connect Part No.: T-BS036

  • $ 288.00 or

T-BS036 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 5 mm

Product Drawing

Item # T-BS036
Cube Side Length 5 mm
Clear Aperture >3.5 x 3.5 mm

Transmitted Wavefront Error

  • At 633 nm
 <λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

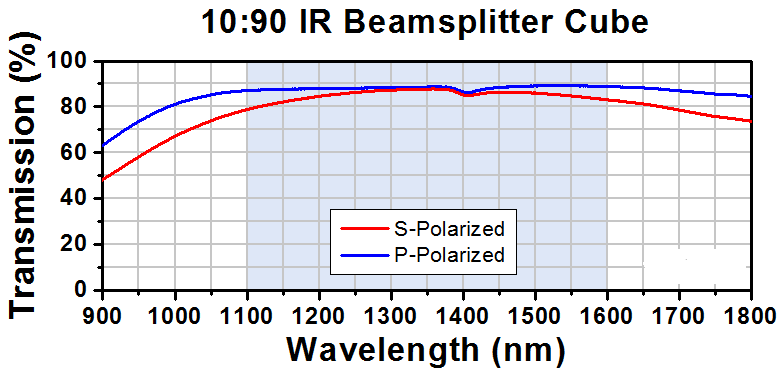

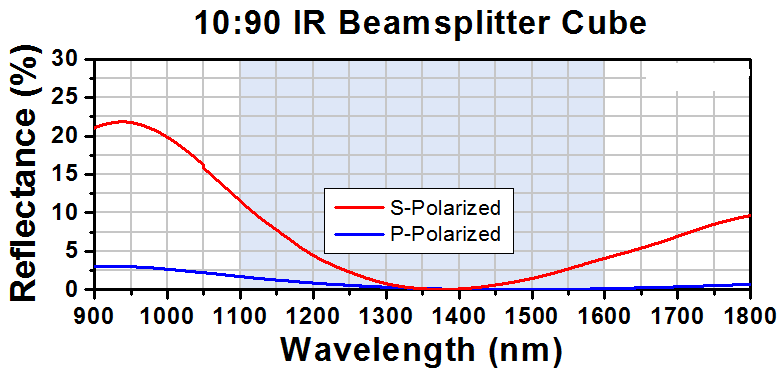

Overall Performance

  • Over the 1100 - 1600 nm Coating Range, 0° AOI
 Tabs = 87 ± 10%, Rabs = 7 +10/-7%, Tabs + Rabs > 85%,
|Ts - Tp| < 10%, and |Rs - Rp| < 10%
