T-BS044 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm
T-BS044 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm
- Broadband AR-Coated Faces for 700 - 1100 nm
- Broadband Beamsplitter Coating on Internal Diagonal Surface
- 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
- Sizes from 5 mm to 2" (See Below for Details)
- N-BK7 Substrate
- Size 20 mm Cube
- Transmitted Wavefront Error (@ 633 nm) <λ/4
- Transmitted Beam Deviation 0° ± 5 arcmin
| Item # | T-BS044 | |
|---|---|---|
| Cube Side Length | 20 mm | |
| Clear Aperture | >16.0 x 16.0 mm | |
| Transmitted Wavefront Error | <λ/4 | |
| Transmitted Beam Deviation | 0° ± 5 arcmin | |

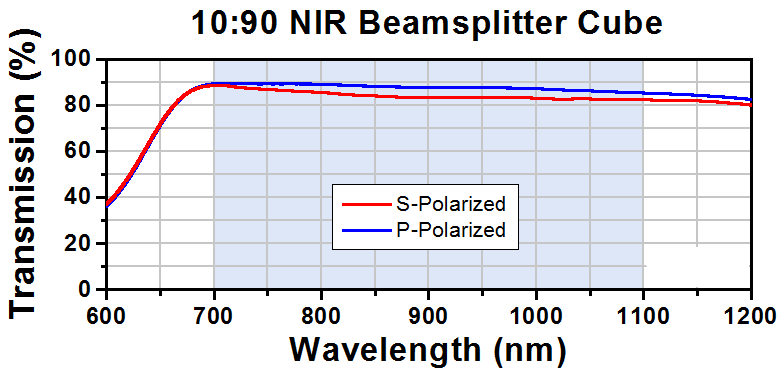

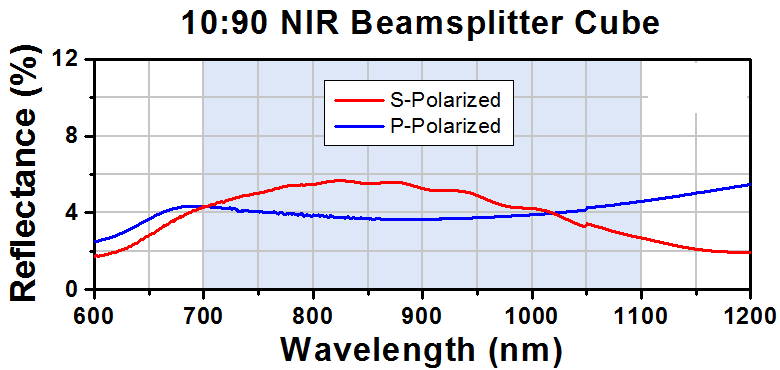

| Overall Performance | Tabs = 87 ± 10%, Rabs = 7 +10/-7%, Tabs + Rabs > 85%, |Ts - Tp| < 10%, and |Rs - Rp| < 10% | |
