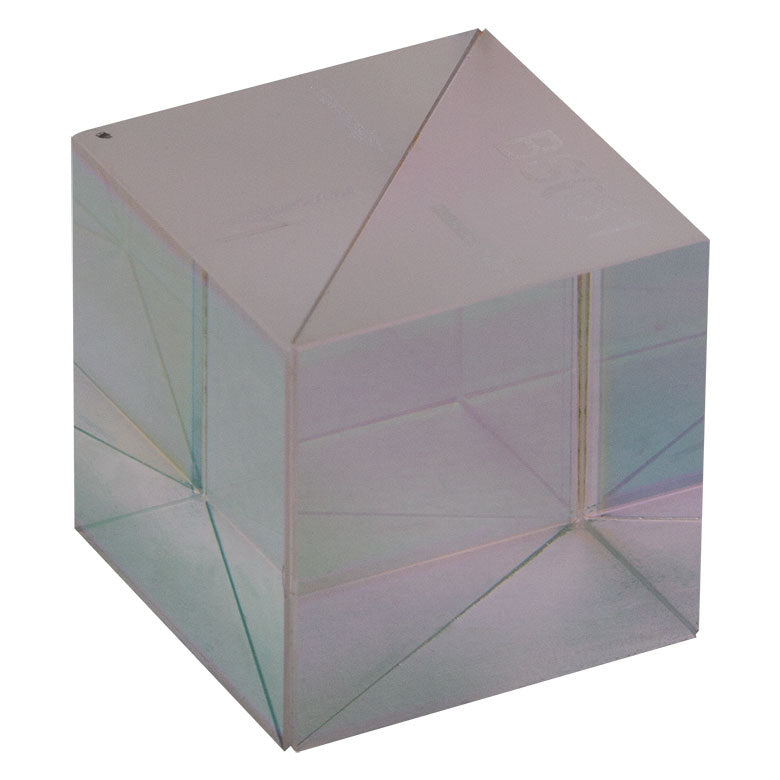

T-BS081 - 30:70 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 20 mm

Fosco Connect Part No.: T-BS081

  • $ 365.00 or



T-BS081 - 30:70 (R:T) Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 20 mm

Product Drawing

  • Broadband AR-Coated Faces for 1100 - 1600 nm
  • Broadband Beamsplitter Coating on Internal Diagonal Surface
  • 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
  • Sizes from 5 mm to 2" (See Below for Details)
  • N-BK7 Substrate
  • Size 20 mm Cube
Item # T-BS081
Cube Side Length 20 mm
Clear Aperture >16.0 x 16.0 mm
Transmitted Wavefront Error
  • At 633 nm
<λ/4
Transmitted Beam Deviation <5 arcmin

Overall Performance

  • Over the 1100 - 1600 nm Coating Range, 0° AOI
Tabs = 62 ± 10%, Rabs = 27 ± 10%, Tabs + Rabs > 80%,
|Ts - Tp| < 10%, and |Rs - Rp| < 10%
