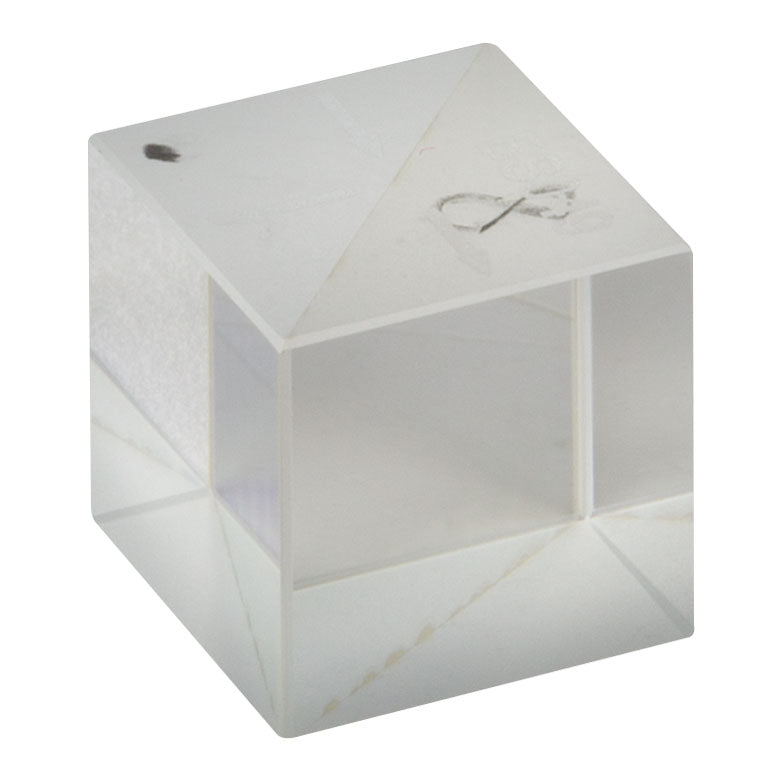

T-BS049 - 30:70 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 10 mm

Fosco Connect Part No.: T-BS049

  • $ 325.00 or



T-BS049 - 30:70 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 10 mm

Product Drawing

  • Broadband AR-Coated Faces for 400 - 700 nm
  • Broadband Beamsplitter Coating on Internal Diagonal Surface
  • 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
  • Sizes from 5 mm to 2" (See Below for Details)
  • N-BK7 Substrate
Item # T-BS049
Cube Side Length 10 mm
Clear Aperture >8.0 x 8.0 mm

Transmitted Wavefront Error

  • At 633 nm
<λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

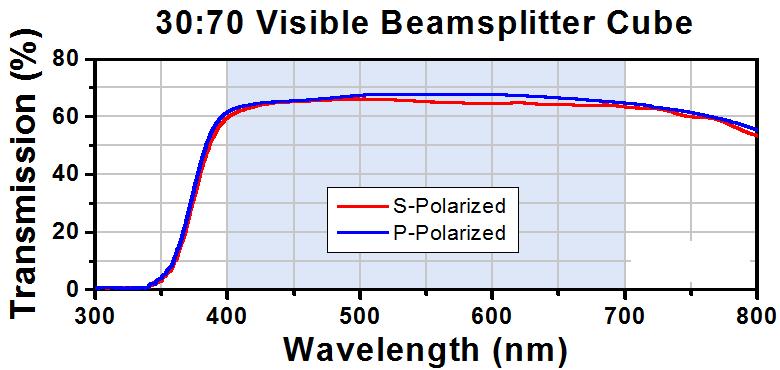

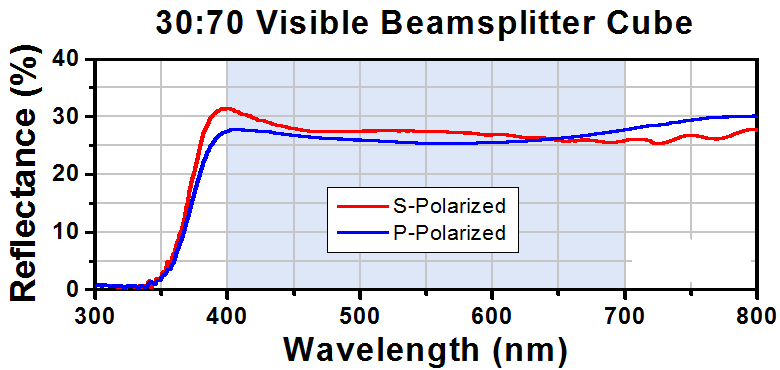

Overall Performance

  • Over the 400 - 700 nm Coating Range, 0° AOI
Tabs= 65 ± 10%, Rabs= 26 ± 8%, and Tabs + Rabs > 80%
|T- Tp| < 15% and |R- Rp| < 15%



General Specifications
Wavelength Range  400 - 700 nm
AR Coating
(All Four Surfaces, Click for Plot)
 Ravg < 0.5% at 0° AOI
from 400 - 700 nm
Substrate Material N-BK7
Dimensional Tolerance  +0.0 / -0.2 mm
Reflected Beam Deviation  90° ± 5 arcmin
Surface Quality  40-20 Scratch-Dig
