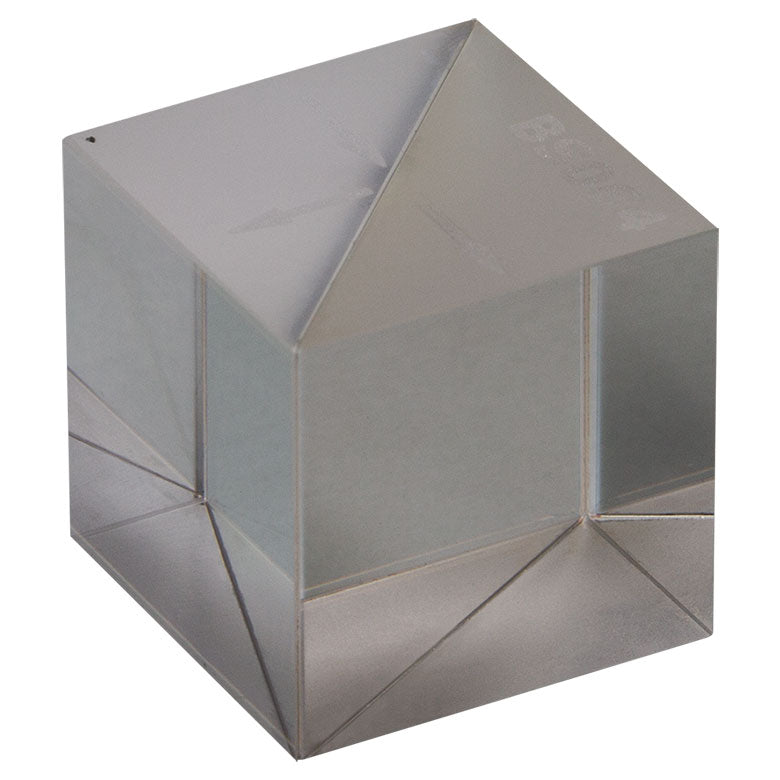

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

Fosco Connect Part No.: T-BS064

$ 375.00 or

T-BS064 - 70:30 (R:T) Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 20 mm

Product Drawing

General Specifications
Wavelength Range	400 - 700 nm
AR Coating (All Four Surfaces, Click for Plot)	R_avg < 0.5% at 0° AOI from 400 - 700 nm
Substrate Material Click Link for Detailed Specifications on the Substrate	N-BK7
Dimensional Tolerance	+0.0 / -0.2 mm
Reflected Beam Deviation	90° ± 5 arcmin
Surface Quality	40-20 Scratch-Dig

Item #	T-BS064
Cube Side Length	20 mm
Clear Aperture	>16.0 x 16.0 mm
Transmitted Wavefront Error At 633 nm	<λ/4
Transmitted Beam Deviation	0° ± 5 arcmin
Overall Performance 0° AOI	T_abs= 27 ± 10%, R_abs= 60 +10/-20%, and T_abs + R_abs> 70% (400 - 550 nm) T_abs= 27 ± 10%, R_abs= 67 +5/-15%, T_abs + R_abs> 85% (550 - 700 nm) \|T_s - T_p\| < 10% and \|R_s - R_p\| < 10% (400 - 700 nm)
