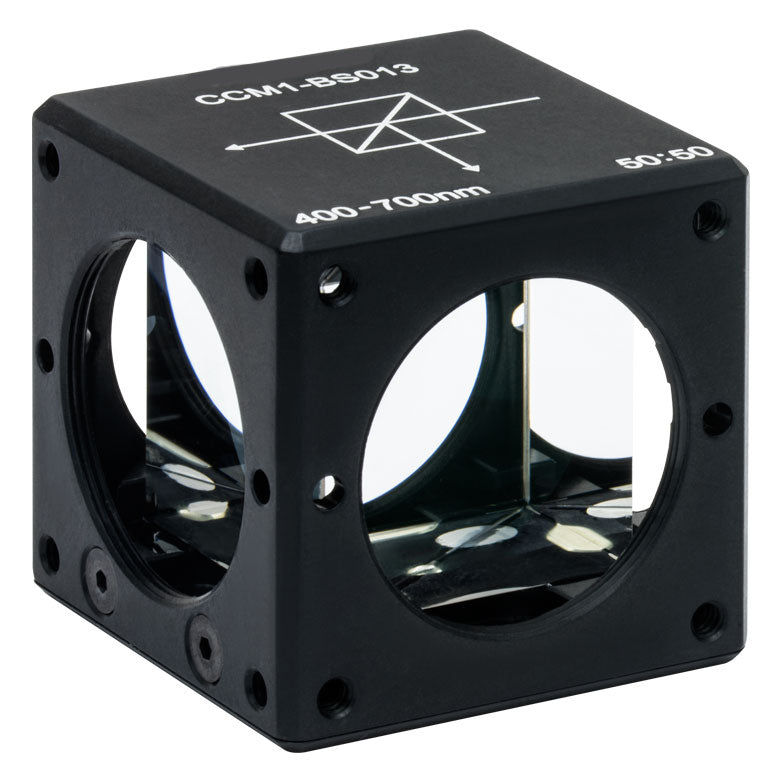

T-CCM1-BS013 - 30 mm Cage Cube-Mounted Non-Polarizing Beamsplitter, 400 - 700 nm, 8-32 Tap
T-CCM1-BS013 - 30 mm Cage Cube-Mounted Non-Polarizing Beamsplitter, 400 - 700 nm, 8-32 Tap
- Three Wavelength Ranges Available
- 400 - 700 nm
- 700 - 1100 nm
- 1100 - 1600 nm
- Split Ratio of 50:50

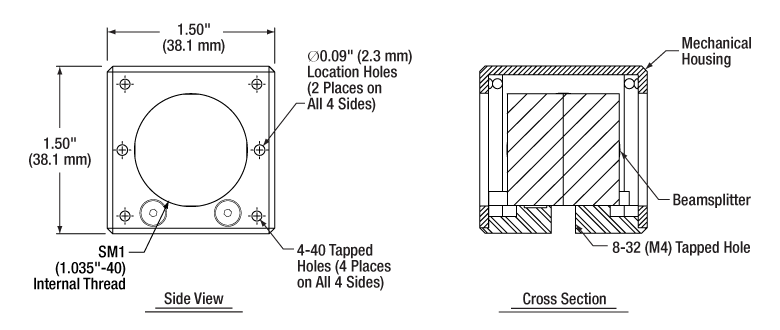

- Four SM1-Threaded (1.035"-40) Ports
| Damage Threshold Specifications | ||
|---|---|---|
| Item # | Laser Type | Damage Threshold |
| CCM1-BS013(-M) | Pulsed | 0.25 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.341 mm) |
| CW | 50 W/cm (532 nm, Ø1.000 mm) | |
| Item # | T-CCM1-BS013(-M) | |
|---|---|---|
| AR-Coating Range | 400 - 700 nm | |
| Reflectance @ 0° AOI | Ravg<0.5% | |
| Split Ratio | 50:50 | |

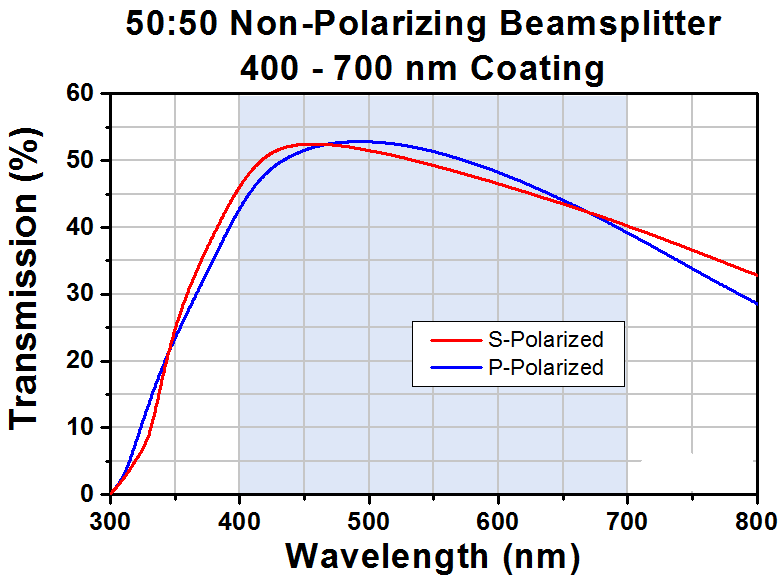

| Performance | Tabs= 47 ± 10%, Rabs= 47 ± 10%, Tabs + Rabs > 85%, Tavg + Ravg > 90%, |Ts - Tp| < 10%, and |Rs - Rp| < 10% |
|
| Ports | 4 Ports With SM1 (1.035"-40) Thread | |
| Beamsplitter Material | N-BK7 - Grade A | |
| Housing Material | Engraved Black Anodized Aluminum Housing | |
| Transmitted Wavefront Error | λ/4 at 633 nm (rms) | |
| Max Transmitted Beam Deviation | ±5 arcmin | |
| Reflected Beam Deviation | 90° ± 20 arcmin | |
| Clear Aperture | >Ø20.3 mm | |
| Surface Quality | 40-20 Scratch-Dig | |
| Damage Threshold | Pulsed | 0.25 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.341 mm) |
| CW | 50 W/cm (532 nm, Ø1.000 mm) |
|
