T-DCMP175 - Dispersion-Compensating Mirror Set, 700 nm - 1000 nm, 8° AOI, Qty. 2

Fosco Connect Part No.: T-DCMP175

  • $ 3,500.00 or



T-DCMP175 - Dispersion-Compensating Mirror Set, 700 nm - 1000 nm, 8° AOI, Qty. 2

Product Drawing

  • >99% Average Reflectance from 700 to 1000 nm
  • Group Delay Dispersion (GDD) per Reflection: -175 fs2 at 800 nm
  • Coated Surface Dimensions: 50 mm x 8 mm
  • 8° AOI
  • Designed for Pulses with Spectral Bandwidth >50 nm FWHM
  • Sold in Packs of 2

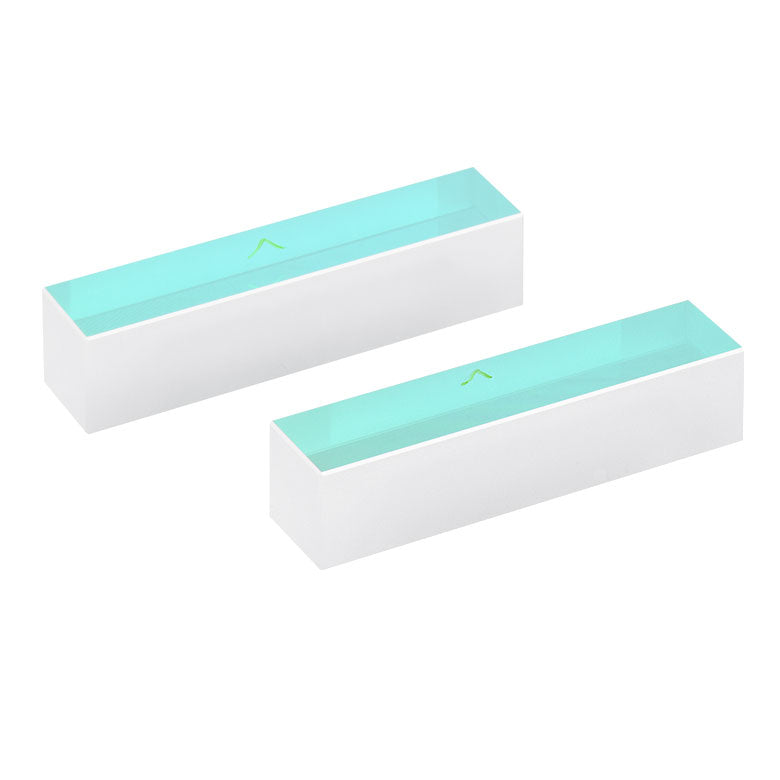

The T-DCMP175 consists of a pair of rectangular optics with >99% average reflectance over the 700 - 1000 nm wavelength range. These mirrors are designed to integrate with multiphoton microscopy setups, which typically include long path lengths through highly dispersive glass. The 8° AOI allows these mirrors to perform similarly for both s- and p-polarized light, and is ideal for a compact setup where multiple reflections are needed.

Mounting Option
This mirror can be mounted in the Kinematic Grating Mount Adapter, which is compatible with Ø1", front-loading, unthreaded mirror mounts, such as our Polaris Ultrastable Kinematic Mirror Mount.

Specifications
Item # T-CMP175
Wavelength Range 700 - 1000 nm
Reflectance over Wavelength Range Ravg > 99% over Wavelength Range
Group Delay Dispersion (GDD) per Reflection -175 fs2 at 800 nm
Size 53.0 mm x 12.0 mm
(2.09" x 0.47")
Diameter Tolerance N/A
Thickness 12.0 mm (2.09")
Thickness Tolerance -
Clear Aperture At Least 8 mm x 50 mm
Angle of Incidence (AOI)
Surface Flatness λ/10 Over Any Ø8 mm in the Clear Aperture
Surface Quality 10-5 Scratch-Dig
Back Surface -
Laser-Induced Damage Threshold 0.10 J/cm2 (800 nm, 100 fs)
Substrate Fused Silica
Parallelism -
