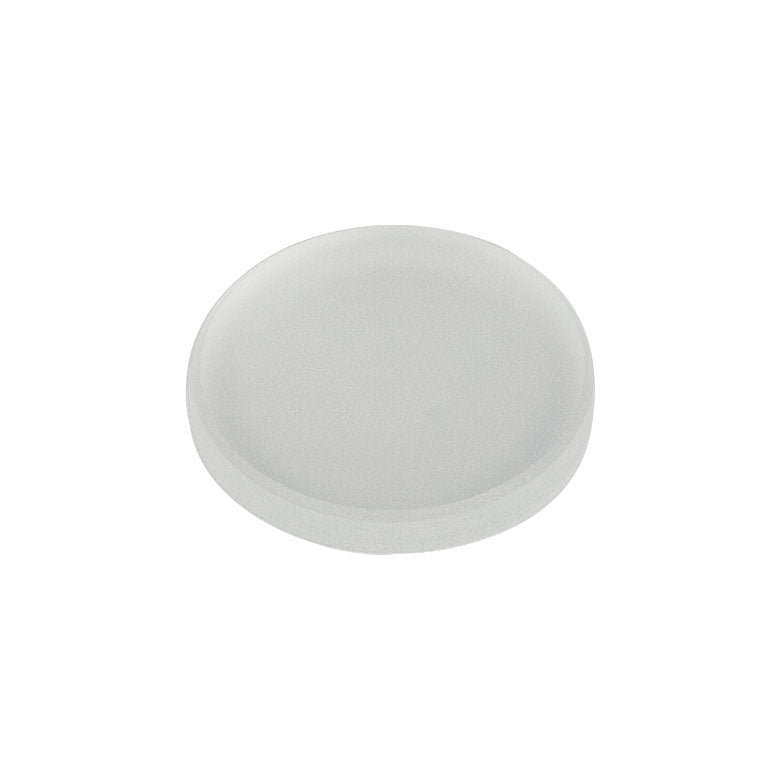

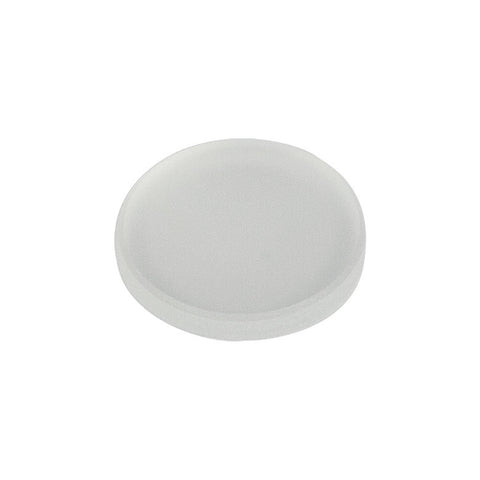

T-DG05-1500 - Ø1/2" Unmounted N-BK7 Ground Glass Diffuser, 1500 Grit
T-DG05-1500 - Ø1/2" Unmounted N-BK7 Ground Glass Diffuser, 1500 Grit
Features
- Available in Four Sizes:
- Round: Ø1/2", Ø1", and Ø2"
- Square: 100 mm x 100 mm
- Substrate Material: N-BK7 (Uncoated)
| Common Specifications | |
|---|---|
| Thickness | 2.0 mm |
| Clear Aperture | >90% |
| Surface Flatness of Smooth Side (@ 633 nm) | <4λ |
| Surface Quality of Smooth Side | 80-50 Scratch-Dig |
| Parallelism | <3 arcmin |
| Item # | Size | Grit |
|---|---|---|
| T-DG05-120 | Ø1/2" | 120 |
| T-DG05-220 | Ø1/2" | 220 |
| T-DG05-600 | Ø1/2" | 600 |
| T-DG05-1500 | Ø1/2" | 1500 |
