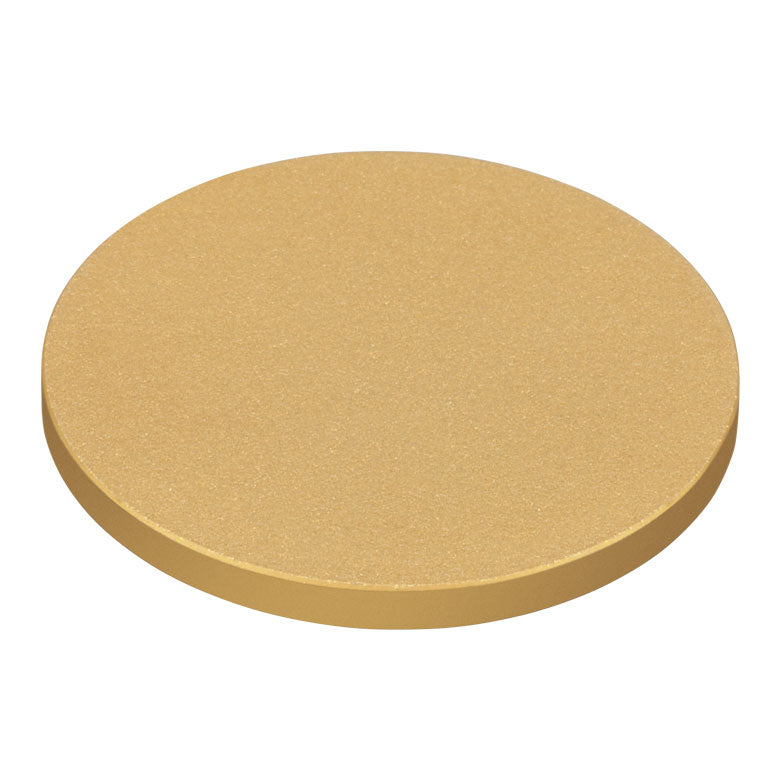

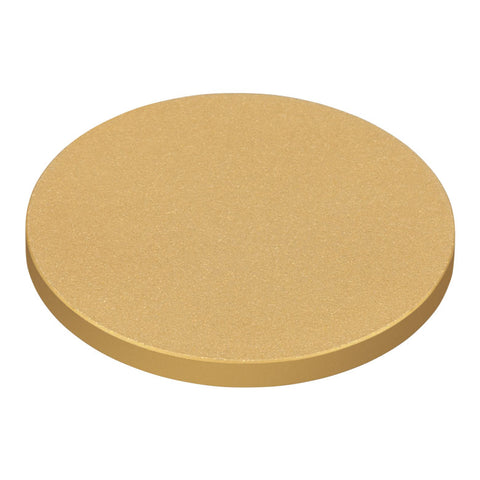

T-DG10-220-M01 - Ø1" Protected Gold Reflective Ground Glass Diffuser, 220 Grit
T-DG10-220-M01 - Ø1" Protected Gold Reflective Ground Glass Diffuser, 220 Grit
- Ø1" Diffuse Reflectors
- Coated Surface has 120, 220, 600, or 1500 Grit
- Protected Gold HR Coating for the 800 nm to 20 µm Range

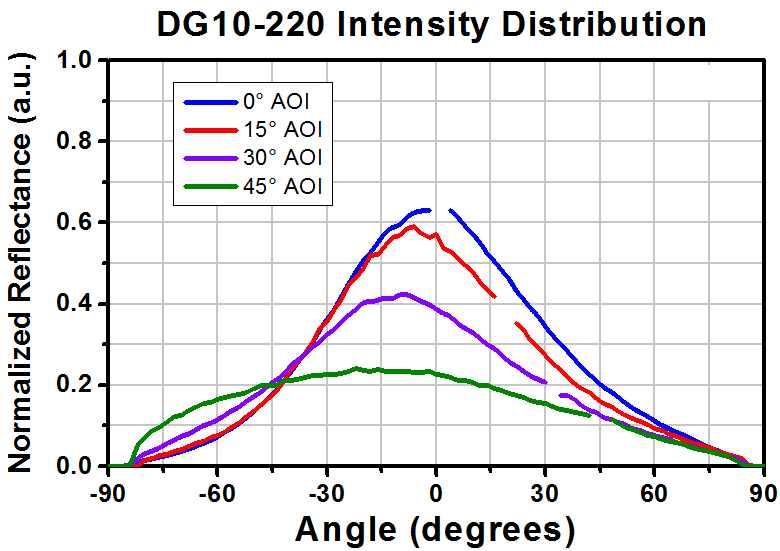

- Near-Gaussian Intensity Pattern at Small Angles of Incidence (AOIs) (See Graph Below)
- Clear Aperture: >90% Diameter
| Common Specifications | ||
|---|---|---|
| Coating on Grit Side | Protected Gold | |
| Average Reflectance of Coating (AOI = 0 to 45°) |
>96% from 800 nm to 20 µm | |
| Substrate | N-BK7 | |

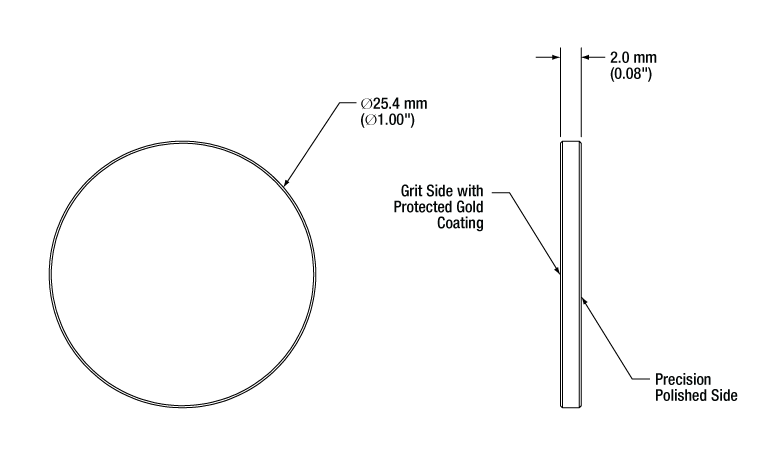

| Diameter | 1.00" (25.4 mm) | |
| Thickness | 2.0 mm (0.08") | |
| Clear Aperture | >90% Diameter | |
| Parallelism | <3 arcmin | |
| Item # | Grit |
|---|---|
| T-DG10-120-M01 | 120 |
| T-DG10-220-M01 | 220 |
| T-DG10-600-M01 | 600 |
| T-DG10-1500-M01 | 1500 |
