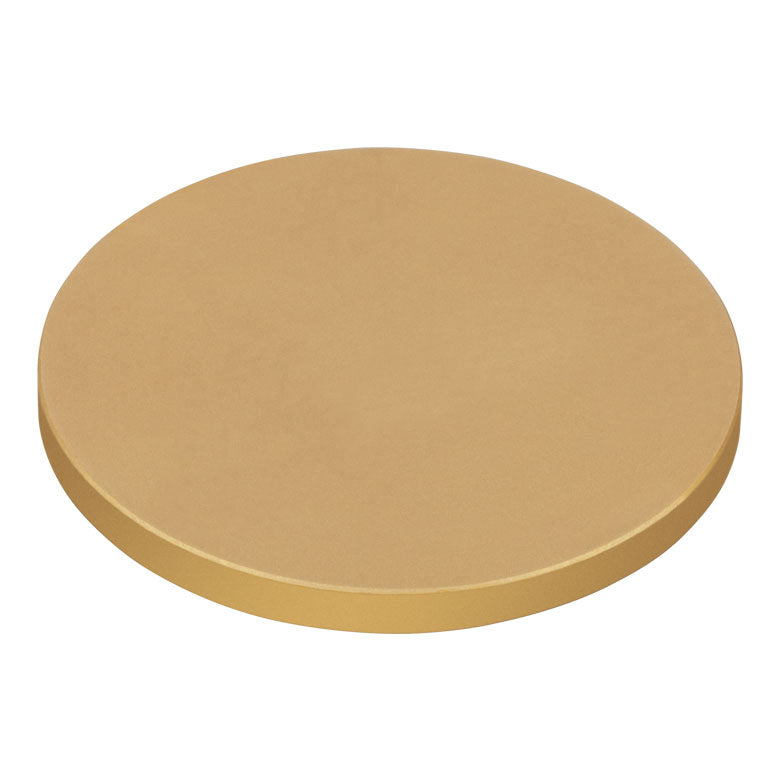

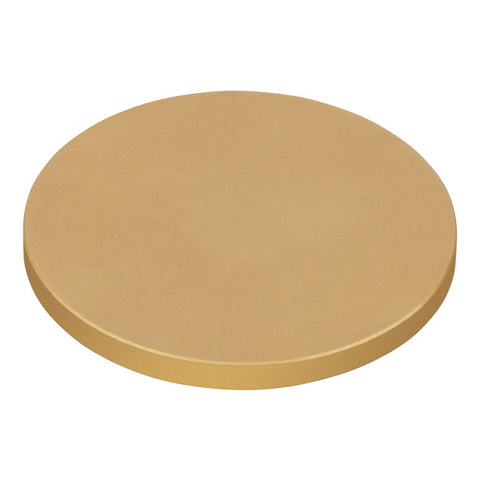

T-DG10-600-M01 - Ø1" Protected Gold Reflective Ground Glass Diffuser, 600 Grit

Fosco Connect Part No.: T-DG10-600-M01

  • $ 92.00 or



T-DG10-600-M01 - Ø1" Protected Gold Reflective Ground Glass Diffuser, 600 Grit

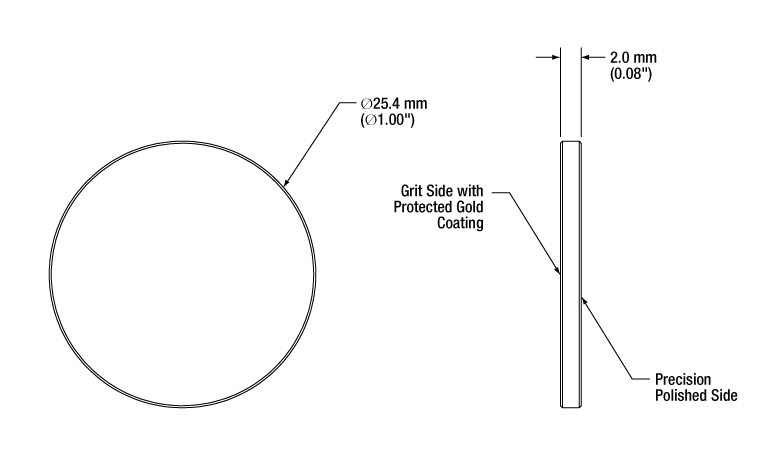

Product Drawing

  • Ø1" Diffuse Reflectors
  • Coated Surface has 120, 220, 600, or 1500 Grit
  • Protected Gold HR Coating for the 800 nm to 20 µm Range

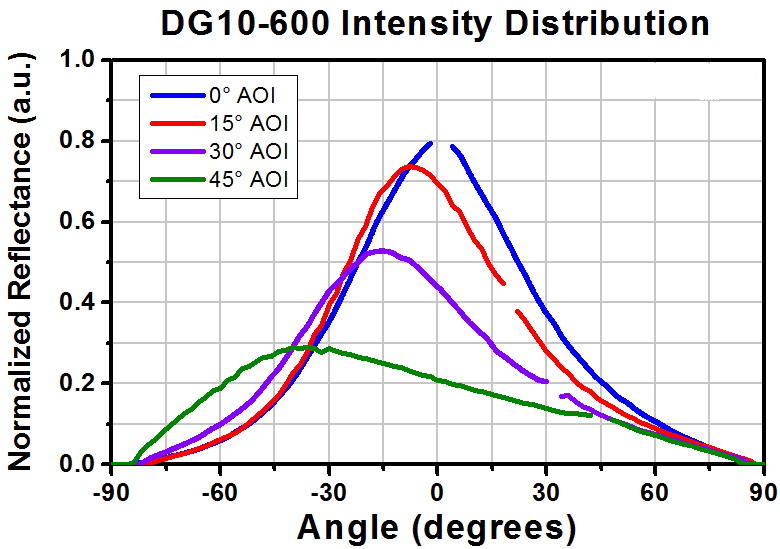

  • Near-Gaussian Intensity Pattern at Small Angles of Incidence (AOIs) (See Graph Below)
  • Clear Aperture: >90% Diameter
Common Specifications
Coating on Grit Side Protected Gold
Average Reflectance of Coating
(AOI = 0 to 45°)
>96% from 800 nm to 20 µm
Substrate N-BK7
Diameter 1.00" (25.4 mm)
Thickness 2.0 mm (0.08")
Clear Aperture >90% Diameter
Parallelism <3 arcmin
Item # Grit
T-DG10-120-M01 120
T-DG10-220-M01 220
T-DG10-600-M01 600
T-DG10-1500-M01 1500
