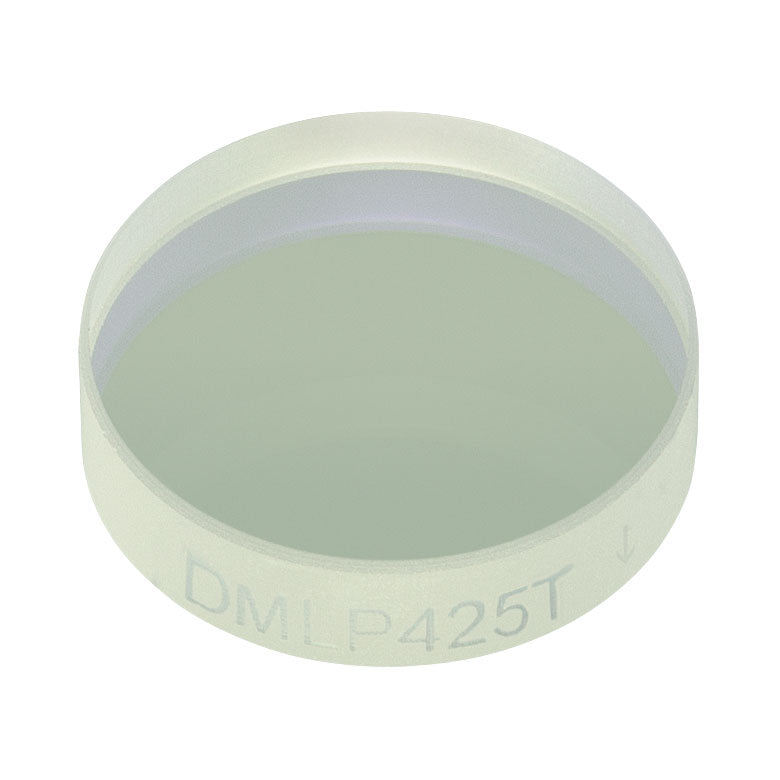

T-DMLP425T - Ø1/2" Longpass Dichroic Mirror, 425 nm Cut-On
Product Drawing
| Specifications |
| Cut-On Wavelength |
425 nm |
| Transmission Band (Tabs > 85%, Tavg > 90%) |
440 - 800 nm |
| Reflection Band (Rabs > 90%, Ravg > 95%) |
380 - 410 nm |
| Type |
Longpass |
| Cut-On Wavelength |
425 nm |
| Transmission Banda
|
440 - 800 nm |
| Reflection Bandb
|
380 - 410 nm |
| AR Coating Rangec
|
400 - 800 nm |
| Size |
Ø1/2" |
| Clear Aperture |
≥Ø11.43 mm |
| Thickness |
3.2 mm |
| Incident Angle |
45° |
| Surface Quality |
40-20 Scratch-Dig |
| Transmitted Wavefront Error |
λ/4 @ 633 nm Over Clear Aperture |
| Damage Threshold |
1.50 J/cm2 (532 nm, 10 Hz, 10 ns, Ø250 µm) |
| Substrate Material |
UV Fused Silica |
