T-DRV8 - 50.8 mm Travel Differential Drive, Ø1/2" (Ø12.7 mm) Mount Bushing
T-DRV8 - 50.8 mm Travel Differential Drive, Ø1/2" (Ø12.7 mm) Mount Bushing
- 50.8 mm (2") Travel
- Non-Rotating Tip
- Fine Resolution: 0.5 µm
- Ø1/2" (Ø12.7 mm) Interchangeable Brass Mounting Bushing
- Coarse Adjustment: 0.5 mm per Revolution
- Fine Adjustment: 50 µm per Revolution

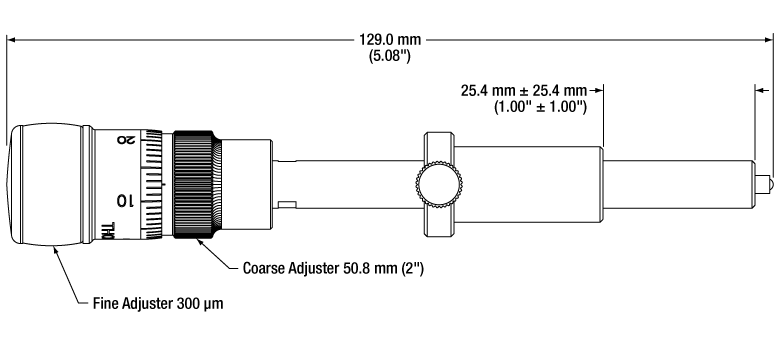

The T-DRV8 Differential Drive has been designed for use with single-axis stages equipped with a Ø1/2" (Ø12.7 mm) actuator mounting clamp. The large-diameter differential drive actuator provides fine, ultra-smooth control over motion. The fine adjuster delivers 50 µm of travel per revolution with 1.0 µm graduations. The removable brass bushing allows this actuator to be used in any OEM application requiring 50.8 mm (2") of overall travel.
| Specifications | |
|---|---|
| Item # | T-RV8 |
| Coarse Adjustment Travel | 50.8 mm |
| Coarse Adjustment per Revolution | 0.5 mm |
| Fine Adjustment Travel | 300 µm |
| Fine Adjustment per Revolution | 0.05 mm with 1 µm Graduations |
