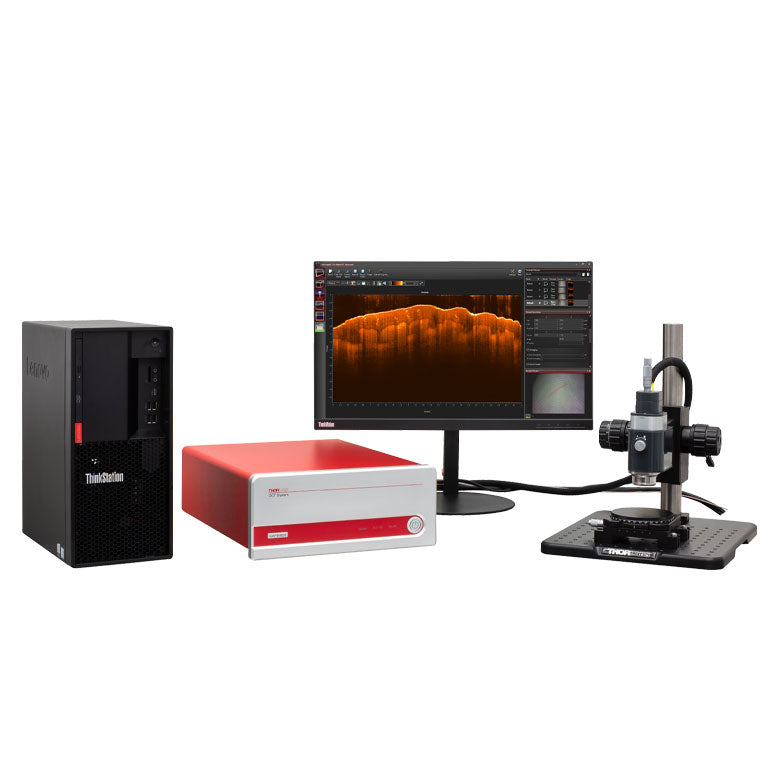

T-GAN312C1 - Spectral Domain OCT System, 880 nm, 6.0 µm Resolution, 1.5 to 80 kHz
T-GAN312C1 - Spectral Domain OCT System, 880 nm, 6.0 µm Resolution, 1.5 to 80 kHz
Reference Adapter Auto CAD PDF
- Complete Preconfigured 880 nm OCT Systems (See Tables Below)
- Fully Customizable Using Other Ganymede™ Series Components
- Configurable Trigger for Integration into Larger Experiments
- Analog Input for Combining Other Data Sources with the OCT Signal
- Internal Hardware Diagnostics for Improved Troubleshooting
- Base unit GAN312
- Scanning System OCTG9 (Standard Scanner)
- Scan Lens Kit OCT-LK3-BB
- Reference Length Adapter OCT-RA3
- Accessories: Stand And Stage OCT-STAND (Scanner Stand) and OCT XYR1 (Translation Stage)
- Center Wavelength 880 nm
- Imaging Depth (Air/Water) 3.4 mm / 2.5 mm
- Axial Resolution (Air/Water) 6.0 µm / 4.5 µm
- Lateral Resolution 8.0 µm
- A-Scan/Line Rate 1.5 - 80 kHz
- Sensitivity (Max) 106 dB (at 1.5 kHz)
