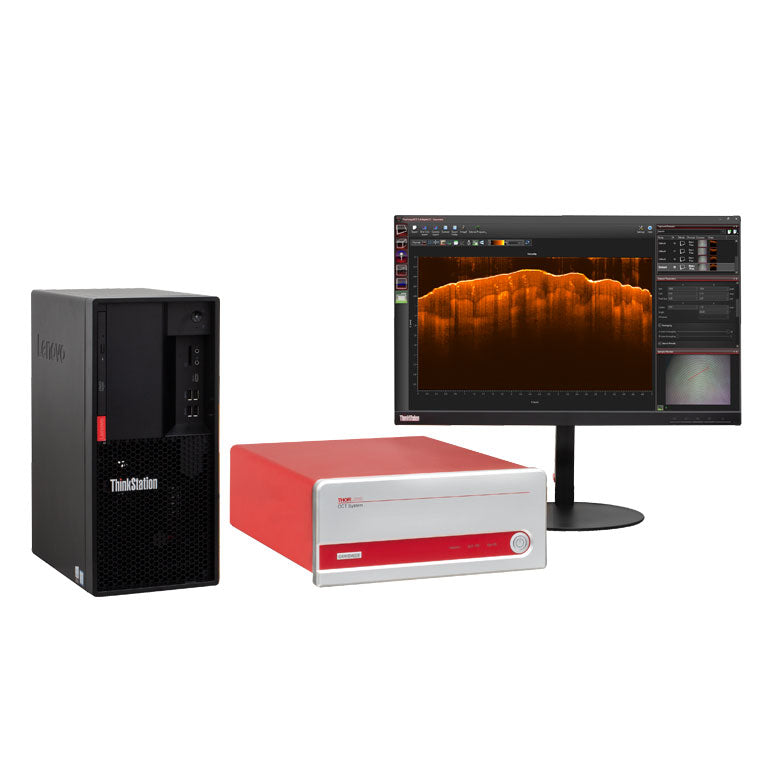

T-GAN612 - Ganymede OCT Base Unit, 880 nm, 6.0 µm Resolution, 5 to 248 kHz

Fosco Connect Part No.: T-GAN612

  • $ 50,250.00 or



T-GAN612 - Ganymede OCT Base Unit, 880 nm, 6.0 µm Resolution, 5 to 248 kHz

Product Drawing

  • Flexibility in Imaging Speed with High- and Very-High-Resolution Performance Options
  • Systems with up to 248 kHz A-Scan Rate (See Table Below)
  • Fully Configurable Trigger for Integration into Larger Experiments
  • Analog Input for Combining Other Data Sources with the OCT Signal
  • Internal Hardware Diagnostics for Improved Troubleshooting
  • Operating System Windows 10, 64 Bit
  • Processor 8 Core, 3.0 GHz
  • Memory 32 GB
  • Hard Drive 512 GB SSD
  • Data Acquisition CameraLink
  • Description High Resolution
  • Center Wavelength 880 nm
  • Imaging Depth (Air/Water) 3.4 mm / 2.5 mm
  • Axial Resolution (Air/Water) 6.0 µm / 4.5 µm
  • A-Scan Line Rate 5, 10, 25, 50, 100, 200, & 248 kHz
  • Sensitivity 84 dB (at 248 kHz) to 102 dB (at 5 kHz)
  • Maximum Pixels per A-Scan 1024
  • Compatible Scanners OCTP-900, OCTP-900/M, and OCTG9
