T-GAN612C1 - Spectral Domain OCT System, 880 nm, 6.0 µm Resolution, 5 to 248 kHz

T-GAN612C1 - Spectral Domain OCT System, 880 nm, 6.0 µm Resolution, 5 to 248 kHz

Product Base unit Auto CAD

Product Scanner Auto CAD

Lens Kit Auto CAD PDF

Reference Adapter Auto CAD

• Complete Preconfigured 880 nm OCT Systems (See Tables Below)
• Fully Customizable Using Other Ganymede™ Series Components
• Configurable Trigger for Integration into Larger Experiments
• Analog Input for Combining Other Data Sources with the OCT Signal
• Internal Hardware Diagnostics for Improved Troubleshooting

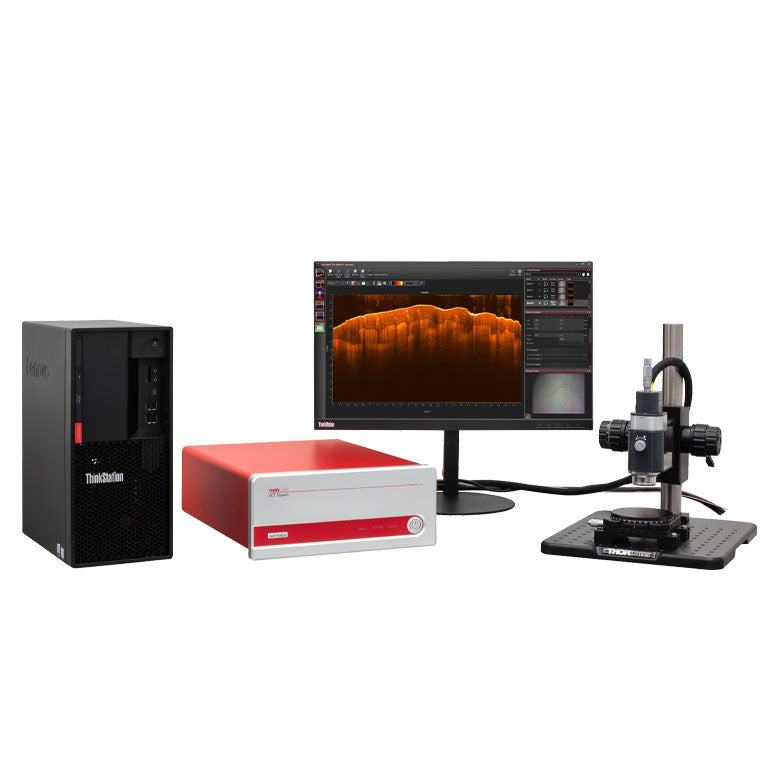

• Base Unit GAN612
• Scanning System OCTG9 (Standard Scanner)
• Scan Lens Kit OCT-LK3-BB
• Reference Length Adapter OCT-RA3
• Accessories: Stand And Stage OCT-STAND^b (Scanner Stand) and OCT-XYR1^b (Translation Stage)
• Center Wavelength 880 nm
• Imaging Depth (Air/Water) 3.4 mm / 2.5 mm
• Axial Resolution (Air/Water) 6.0 µm / 4.5 µm
• Lateral Resolution 8.0 µm
• A-Scan/Line Rate 5 - 248 kHz
• Sensitivity (Max) 102 dB (at 5 kHz)
