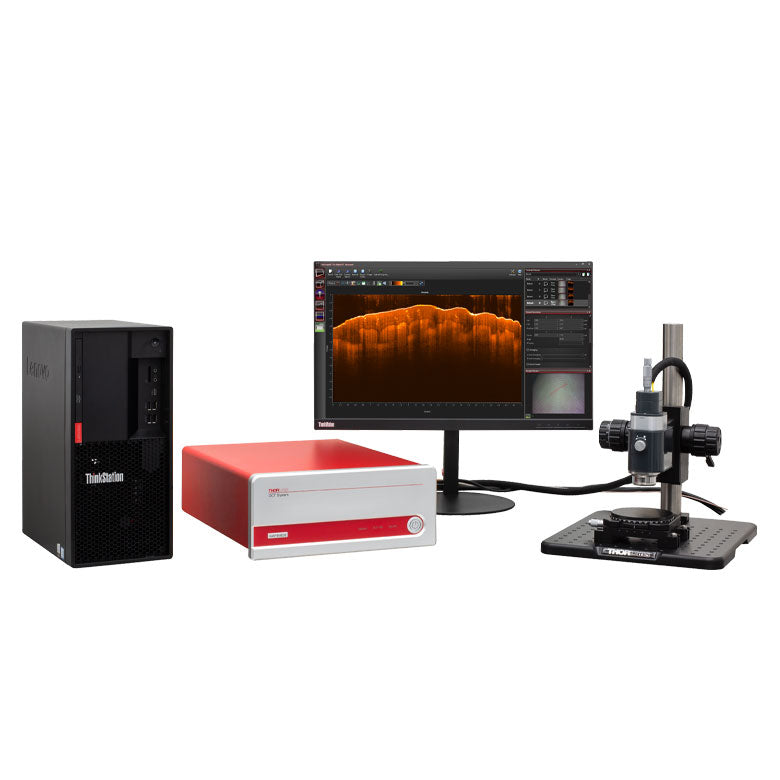

T-GAN632C1 - Spectral Domain OCT System, 880 nm, <3.0 µm Resolution, 5 to 248 kHz
T-GAN632C1 - Spectral Domain OCT System, 880 nm, <3.0 µm Resolution, 5 to 248 kHz
Reference Adapter Auto CAD PDF
- Complete Preconfigured 880 nm OCT Systems (See Tables Below)
- Fully Customizable Using Other Ganymede™ Series Components
- Configurable Trigger for Integration into Larger Experiments
- Analog Input for Combining Other Data Sources with the OCT Signal
- Internal Hardware Diagnostics for Improved Troubleshooting
- Base Unit GAN632
- Scanning System OCTG9 (Standard Scanner)
- Scan Lens Kit OCT-LK2-BB
- Reference Length Adapter OCT-RA2
- Accessories: Stand And Stage OCT-STAND (Scanner Stand) and OCT-XYR1 (Translation Stage)
- Center Wavelength 880 nm
- Imaging Depth (Air/Water) 1.6 mm / 1.2 mm
- Axial Resolution (Air/Water) <3.0 µm / <2.2 µm
- Lateral Resolution 4.0 µm
- A-Scan/Line Rate 5 - 248 kHz
- Sensitivity (Max) 102 dB (at 5 kHz)
