T-GC051L - Empty Glass Cell with Ø12.7 mm Fused Windows, 100 mm Long, One Fill Tube

Fosco Connect Part No.: T-GC051L

  • $ 379.00 or



T-GC051L - Empty Glass Cell with Ø12.7 mm Fused Windows, 100 mm Long, One Fill Tube

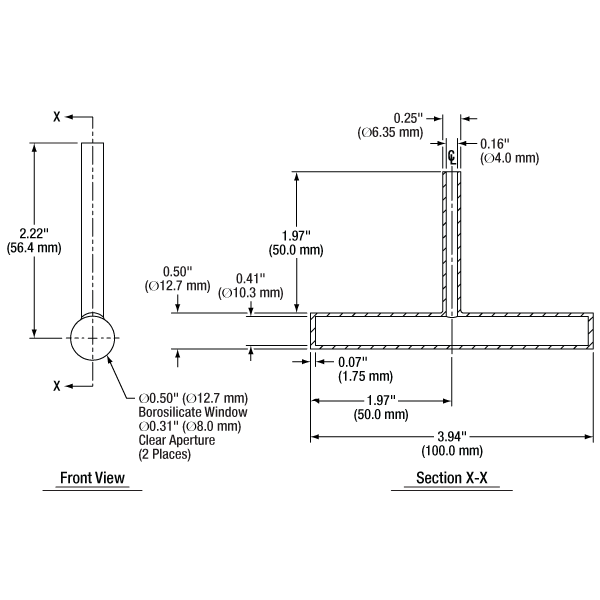

Product Drawing

  • Single Fill Tube
  • Fused Borosilicate Windows
    • Ø12.7 mm Windows: 50 mm
      or 100 mm Long Cells
    • Ø25 mm Windows: 100 mm
      or 500 mm Long Cells
    • Ø50 mm Windows: 100 mm Long Cells
  • Ideal for Sample Isolation
Glass cells with a single fill tube are useful when introducing a sample into the cell and sealing it off for measurements. These cells do not come with integrated valves and can only isolate a sample by adding a valve at another point in the system.
Specifications
Item # T-GC051L
Fill Tubes One
Valve Type N/A
Window Size Ø12.7 ± 0.5 mm
Window Clear Aperture Ø8 ± 1 mm
Window Thickness 1.75 ± 0.2 mm
Window Perpendicularity ±1°
Cell Length 100.0 mm
Cell Length Tolerance ±3.0 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.25" (6.35 mm)

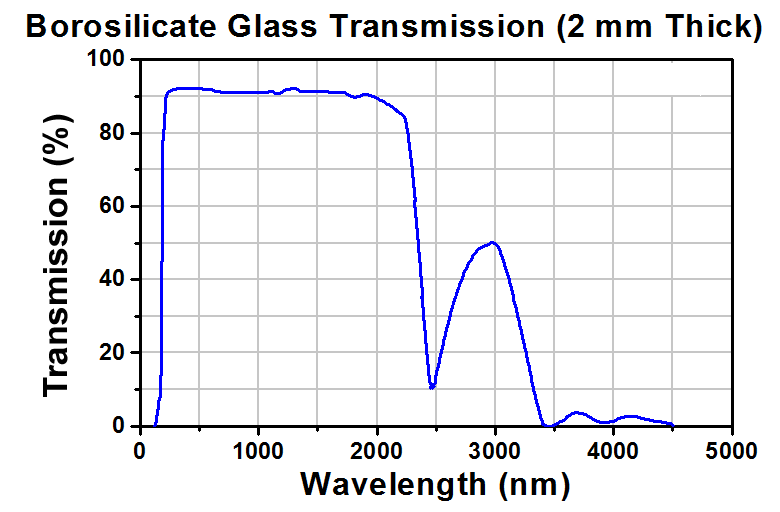

Window & Cell Substrate Uncoated Borosilicate
