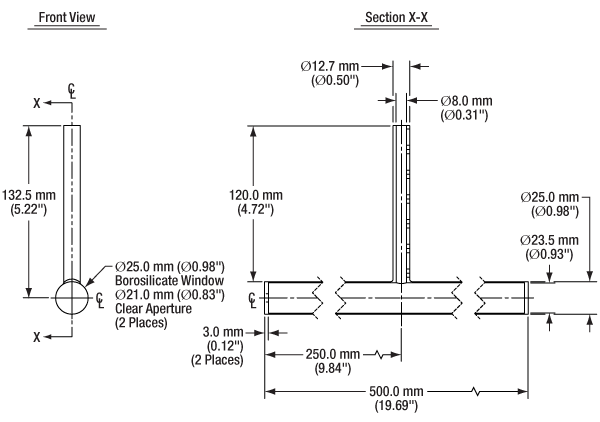

T-GC251L - Empty Glass Cell with Ø25 mm Fused Windows, 500 mm Long, One Fill Tube
T-GC251L - Empty Glass Cell with Ø25 mm Fused Windows, 500 mm Long, One Fill Tube
- Single Fill Tube
- Fused Borosilicate Windows
- Ø12.7 mm Windows: 50 mm
or 100 mm Long Cells - Ø25 mm Windows: 100 mm
or 500 mm Long Cells - Ø50 mm Windows: 100 mm Long Cells
- Ø12.7 mm Windows: 50 mm
- Ideal for Sample Isolation
Glass cells with a single fill tube are useful when introducing a sample into the cell and sealing it off for measurements. These cells do not come with integrated valves and can only isolate a sample by adding a valve at another point in the system.
| Specifications | |
|---|---|
| Item # | T-GC251L |
| Fill Tubes | One |
| Valve Type | N/A |
| Window Size | Ø25.0 ± 0.5 mm |
| Window Clear Aperture | Ø21.0 mm |
| Window Thickness | 3.0 ± 0.5 mm |
| Window Perpendicularity | ±1° |
| Cell Length | 500.0 mm |
| Cell Length Tolerance | ±3.0 mm |
| Pressure @ 25 °C | <10-7 Torr to 5 psi |
| Fill Tube Outer Diameter | 0.50" (12.7 mm) |

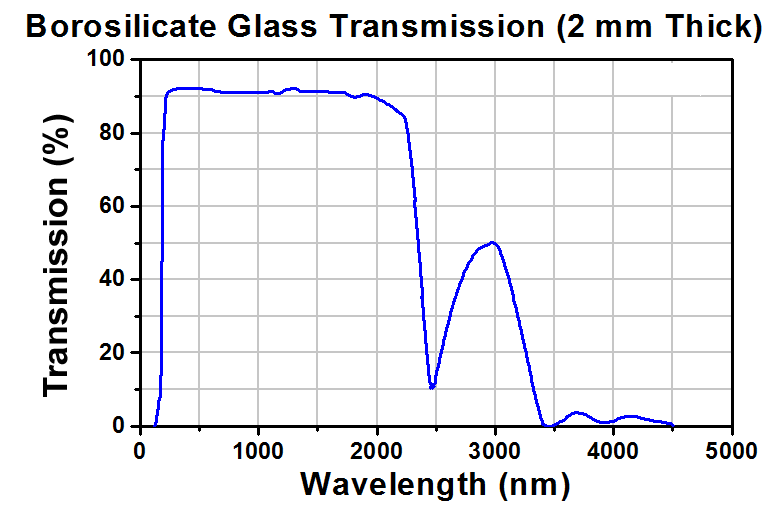

| Window & Cell Substrate | Uncoated Borosilicate |
