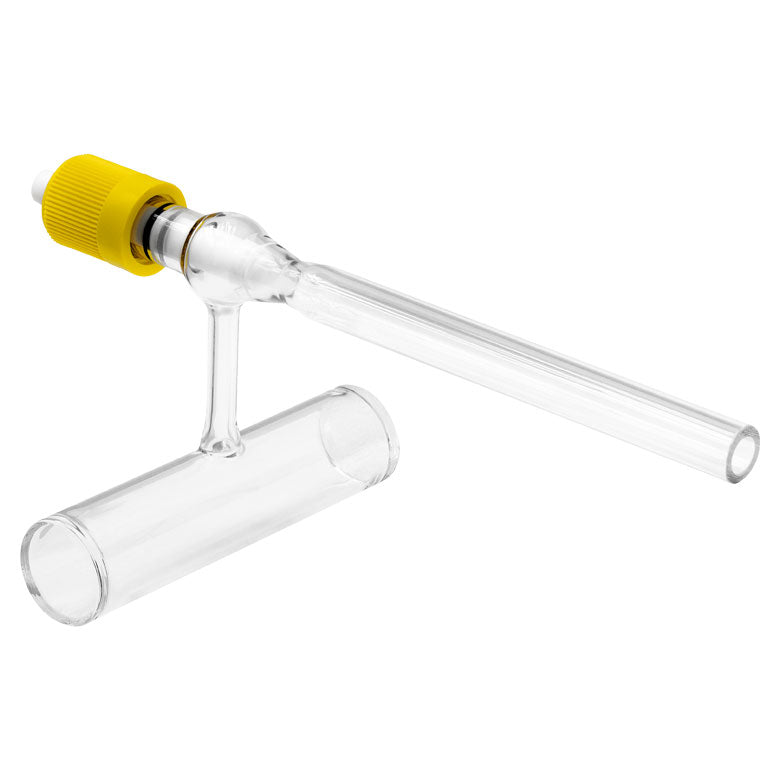

T-GCV251 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, One Fill Tube with J. Young® Valve

Fosco Connect Part No.: T-GCV251

  • $ 750.00 or



T-GCV251 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, One Fill Tube with J. Young® Valve

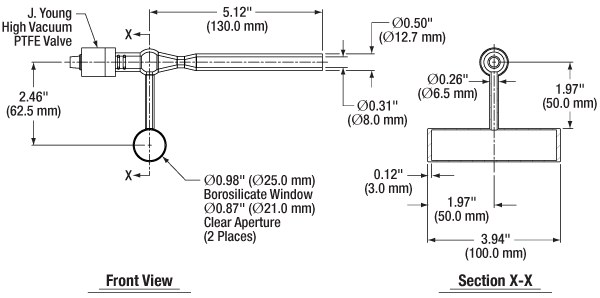

Product Drawing

  • Single Fill Tube with J. Young® Valve
  • 100 mm Long Empty Borosilicate Cells
  • Ø25 mm or Ø50 mm Fused Borosilicate Windows
  • Ideal for Sample Isolation

Glass cells with a single fill tube are useful when introducing a sample into the cell and sealing it off for measurements. A gas sample can be sealed off elsewhere in the system or by using a cell with a J. Young® Valve integrated into its fill tube. J. Young Valves incorporate a retractable, greaseless, PTFE stopcock for maintaining a high vacuum. The yellow knob can be tightened to create a seal before the T-junction fill tube or unscrewed completely for cleaning.

Specifications
Item # T-GCV251
Fill Tubes One
Valve Type J. Young®
Window Size Ø25.0 ± 0.5 mm
Window Clear Aperture Ø21.0 mm
Window Thickness 3.0 ± 0.5 mm
Window Perpendicularity ±1°
Cell Length 100.0 ± 3 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)

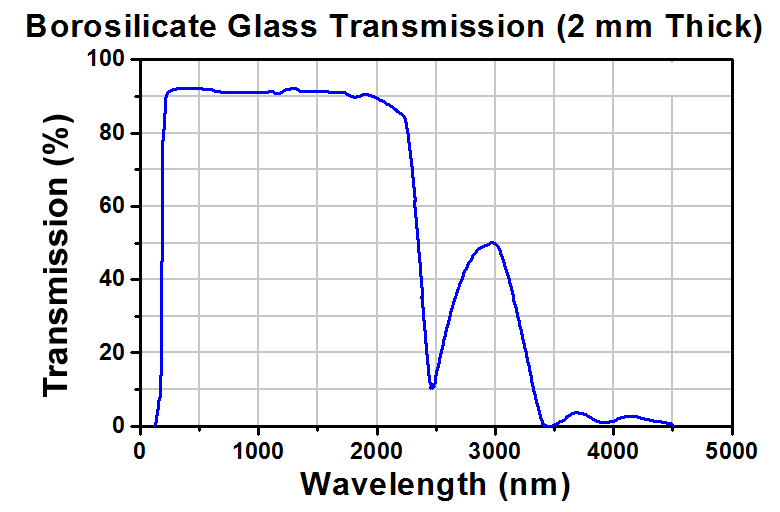

Window & Cell Substrate Uncoated Borosilicate
