T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm
T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm
T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm
Roll over image to zoom in Click on image to zoom
T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mmT-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mmT-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm

T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm

Fosco ConnectSKU: T-GH13-36U
Price:
$ 155.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GH13-36U - UV Reflective Holographic Grating, 3600/mm, 12.7 mm x 12.7 mm x 6 mm

Product Drawing

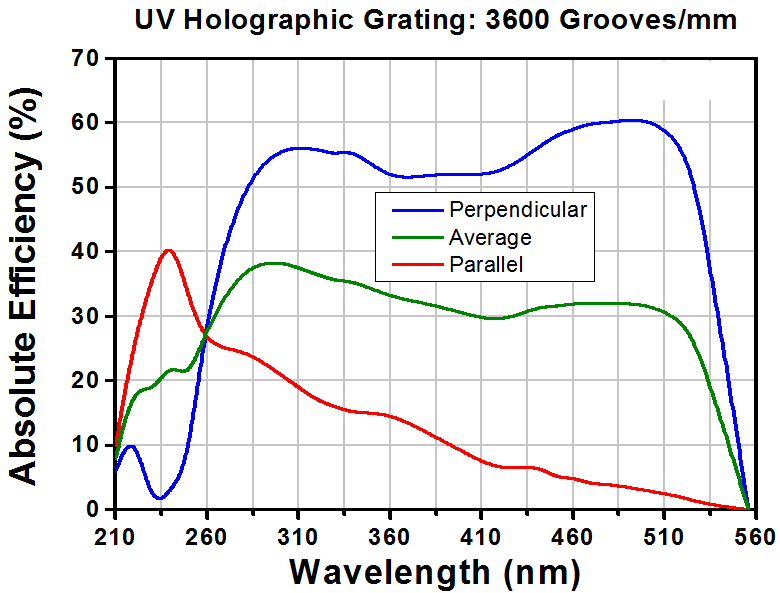

  • 45% to 65% Efficiencies at Peak Wavelength
  • Versions Optimized for the UV and Visible Spectrum
  • Relatively Independent of Angle of Incidence
  • Substrate: Borofloat
  • Three Sizes: 12.7 x 12.7 x 6.0 mm, 25 x 25 x 6.0 mm, and 50 x 50 x 9.5 mm
  • Dimensions (W x H x D) 12.7 mm x 12.7 mm x 6.0 mm
  • Grooves/mm 3600
  • Dispersion @ 250 nm 4.00 mrad/nm (0.25 nm/mrad)
