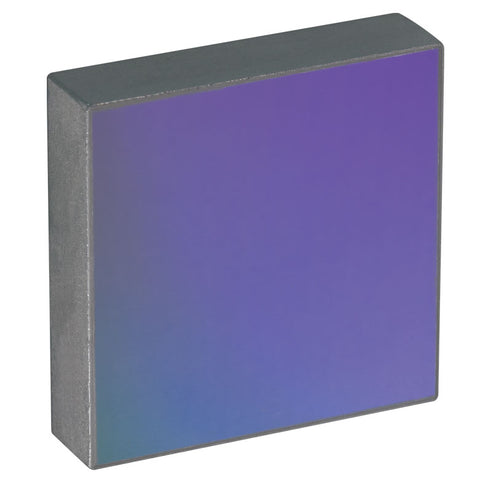

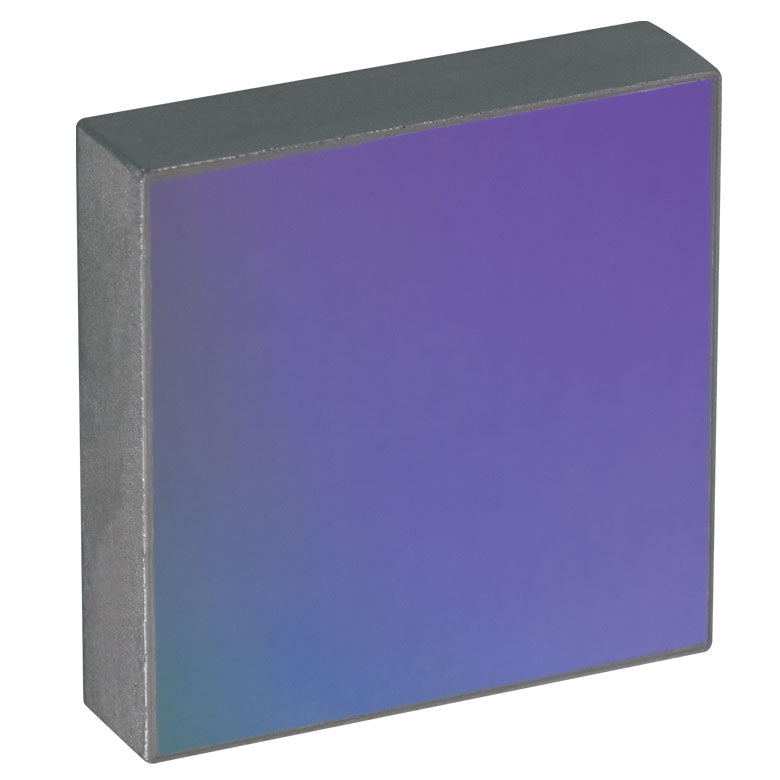

T-GH25-12U - UV Reflective Holographic Grating, 1200/mm, 25 mm x 25 mm x 6 mm
T-GH25-12U - UV Reflective Holographic Grating, 1200/mm, 25 mm x 25 mm x 6 mm

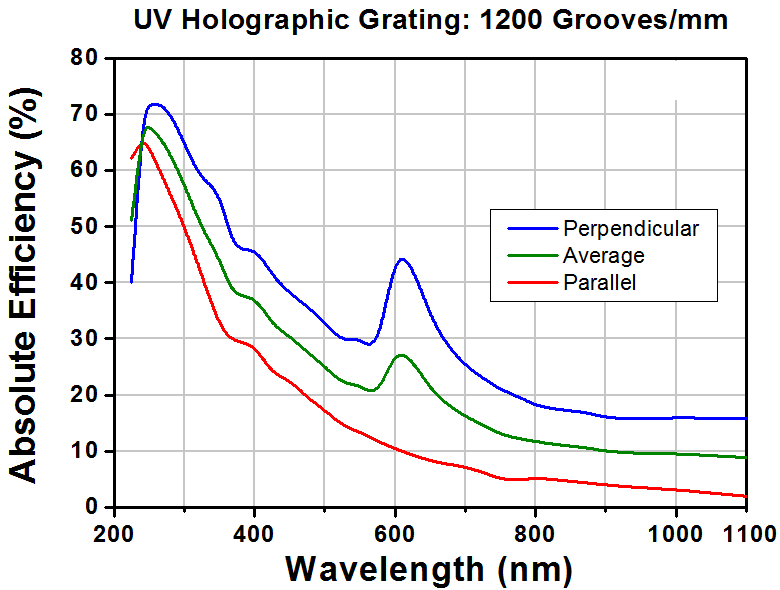

- 45% to 65% Efficiencies at Peak Wavelength
- Versions Optimized for the UV and Visible Spectrum
- Relatively Independent of Angle of Incidence
- Substrate: Borofloat
- Three Sizes: 12.7 x 12.7 x 6.0 mm, 25 x 25 x 6.0 mm, and 50 x 50 x 9.5 mm
- Dimensions (W x H x D) 25.0 mm x 25.0 mm x 6.0 mm
- Grooves/mm 1200
- Dispersion @ 250 nm 1.22 mrad/nm (0.82 nm/mrad)
