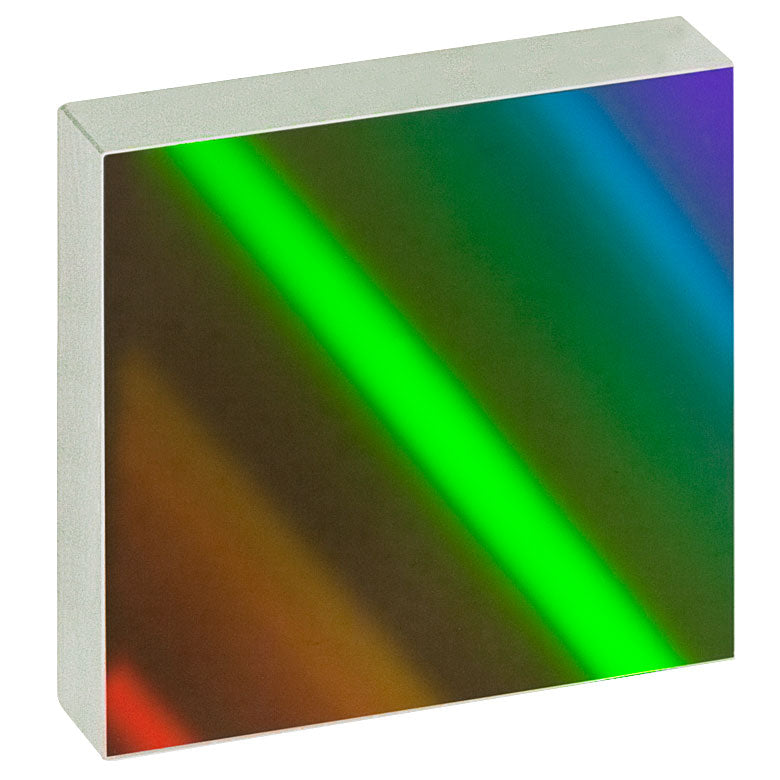

T-GH50-12V - Visible Reflective Holographic Grating, 1200/mm, 50 mm x 50 mm x 9.5 mm
T-GH50-12V - Visible Reflective Holographic Grating, 1200/mm, 50 mm x 50 mm x 9.5 mm

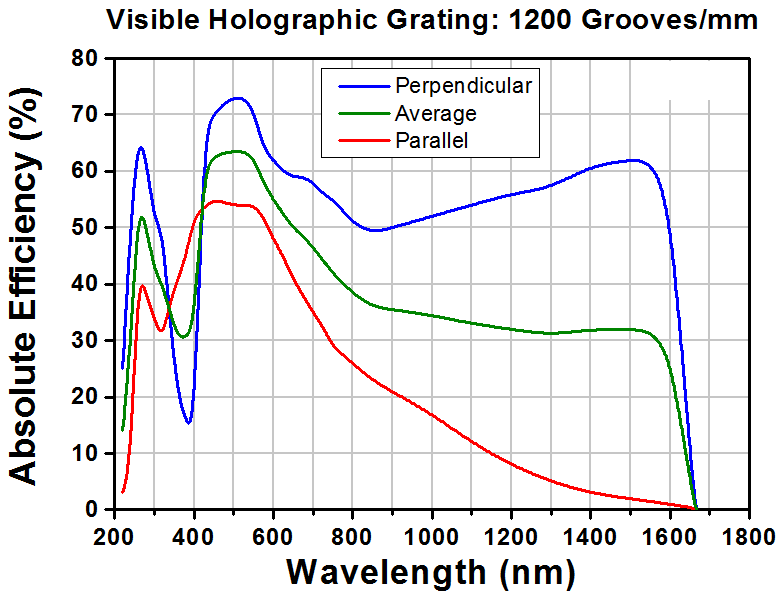

- 45% to 65% Efficiencies at Peak Wavelength
- Versions Optimized for the UV and Visible Spectrum
- Relatively Independent of Angle of Incidence
- Substrate: Borofloat
- Three Sizes: 12.7 x 12.7 x 6.0 mm, 25 x 25 x 6.0 mm, and 50 x 50 x 9.5 mm
- Dimensions (W x H x D) 50.0 mm x 50.0 mm x 9.5 mm
- Grooves/mm 1200
- Dispersion @ 500 nm 1.27 mrad/nm (0.79 nm/mrad)
