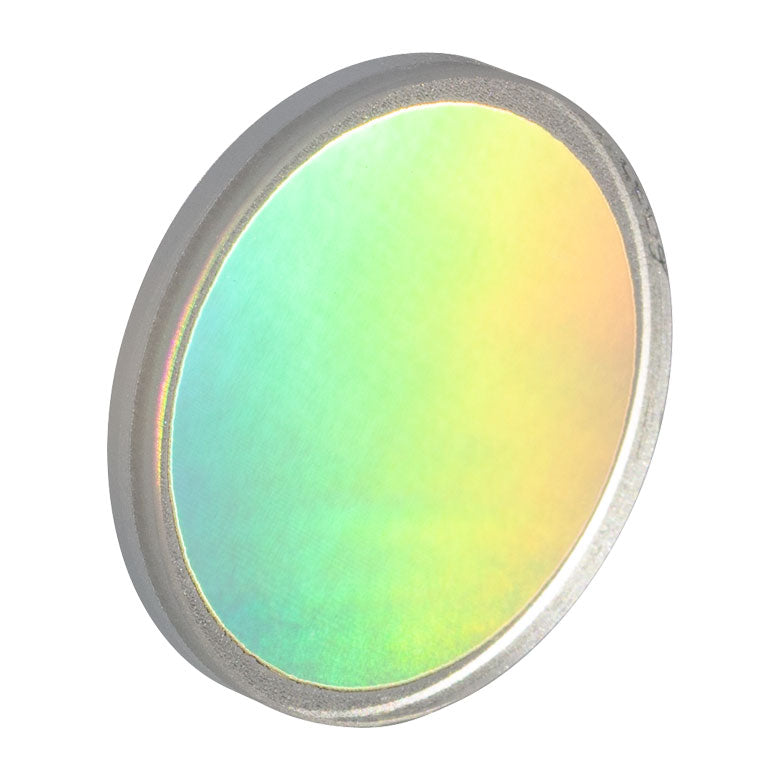

T-GP1006G - VPH Transmission Grating, 600 nm DWL, 600 Lines/mm, 10.4° AOI, Ø1"

Fosco Connect Part No.: T-GP1006G

  • $ 750.00 or



T-GP1006G - VPH Transmission Grating, 600 nm DWL, 600 Lines/mm, 10.4° AOI, Ø1"

Product Drawing

  • Design Wavelength (DWL) and Spatial Frequency Options:
    • 532 nm: 1800 Lines/mm
    • 600 nm: 600 Lines/mm
  • Ø1", Ø2", and 50.0 mm x 30.0 mm Gratings Available
  • High First-Order Diffraction Peak Efficiency (See Tables Below)
  • Low Polarization-Dependent Loss
  • Uniform Performance Over Broad Bandwidths (See Diffraction Efficiency Graphs Below)
  • Extremely Low Scatter Between Orders (No Ghosting)
  • Dichromated Gelatin (DCG) Film Between Two Glass Substrates
  • Ideal for Spectroscopy
  • Design Wavelength 600 nm
  • Spatial Frequency 600 lines/mm
  • Angle of Incidence at the Design Wavelength 10.4°
  • Diffraction Efficiency  450 nm: S-Pol > 60%; P-Pol > 60%
    600 nm: S-Pol > 80%; P-Pol > 80%
    750 nm: S-Pol > 60%; P-Pol > 60%
  • Broadband Antireflection Coating Performance at the Specified AOI (Per Surface) 350 - 850 nm
    Ravg < 1.5%
  • Cover Plate Substrate N-BK7 or Equivalent
  • Dimensions Ø25.4 mm x 3.0 mm
Common Specifications
Grating Film Dichromated Gelatin
Cover-Plate Substrate N-BK7 or Equivalent
Thickness Tolerance ±0.2 mm
Spatial Frequency Tolerance ±2 lines/mm
AOI Tolerance ±1°
Transmitted Wavefront
Error (RMS)
<λ/4 at 632.8 nm
Surface Quality 40-20 Scratch-Dig
