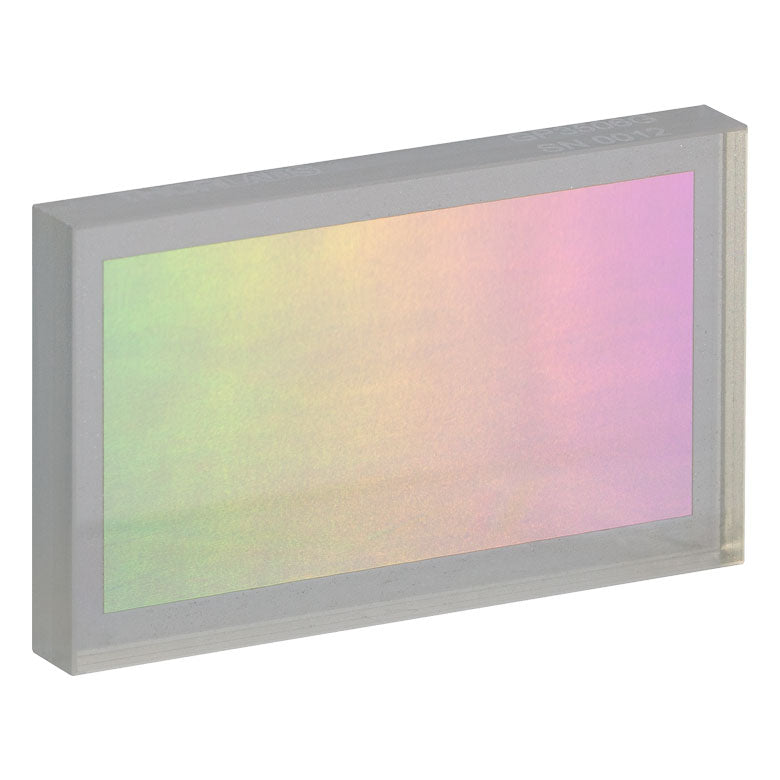

T-GP3506G - VPH Transmission Grating, 600 nm DWL, 600 Lines/mm, 10.4° AOI, 50 mm x 30 mm

Fosco Connect Part No.: T-GP3506G

  • $ 1,525.00 or



T-GP3506G - VPH Transmission Grating, 600 nm DWL, 600 Lines/mm, 10.4° AOI, 50 mm x 30 mm

Product Drawing

  • Design Wavelength (DWL) and Spatial Frequency Options:
    • 532 nm: 1800 Lines/mm
    • 600 nm: 600 Lines/mm
  • Ø1", Ø2", and 50.0 mm x 30.0 mm Gratings Available
  • High First-Order Diffraction Peak Efficiency (See Tables Below)
  • Low Polarization-Dependent Loss
  • Uniform Performance Over Broad Bandwidths (See Diffraction Efficiency Graphs Below)
  • Extremely Low Scatter Between Orders (No Ghosting)
  • Dichromated Gelatin (DCG) Film Between Two Glass Substrates
  • Ideal for Spectroscopy
  • Design Wavelength 600 nm
  •  Spatial Frequency 600 lines/mm
  • Angle of Incidence at the Design Wavelength 10.4°
  •  Diffraction Efficiency 450 nm: S-Pol > 60%; P-Pol > 60%
    600 nm: S-Pol > 80%; P-Pol > 80%
    750 nm: S-Pol > 60%; P-Pol > 60%
  • Broadband Antireflection Coating Performance at the Specified AOI (Per Surface) 350 - 850 nm
    Ravg < 1.5%
  • Cover Plate Substrate N-BK7 or Equuivalent
  • Dimensions 50.0 mm x 30.0 mm x 6.0 mm
