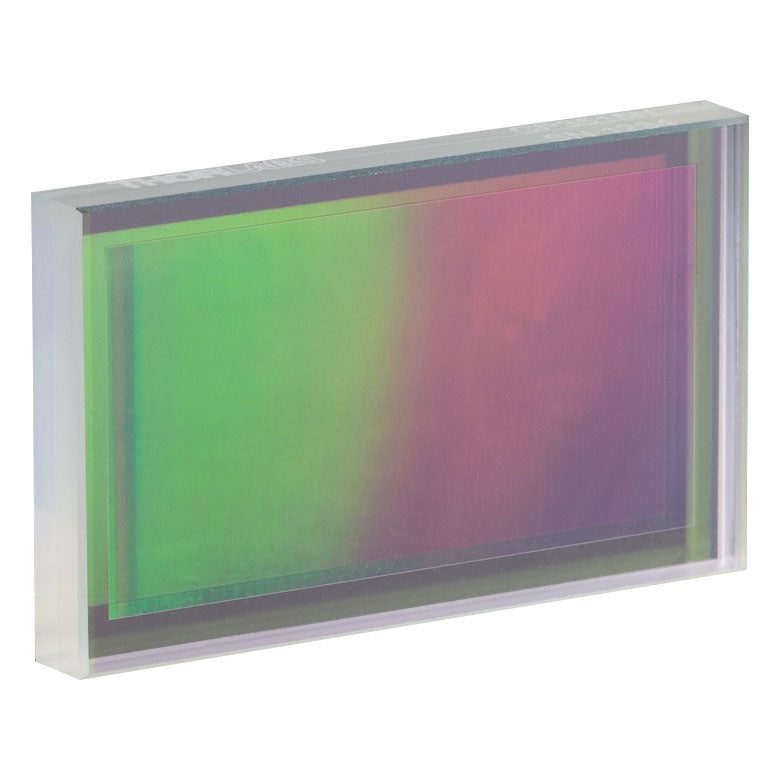

T-GP3512N - VPH Transmission Grating, 930 nm DWL, 1200 Lines/mm, 34° AOI, 50 mm x 30 mm
T-GP3512N - VPH Transmission Grating, 930 nm DWL, 1200 Lines/mm, 34° AOI, 50 mm x 30 mm

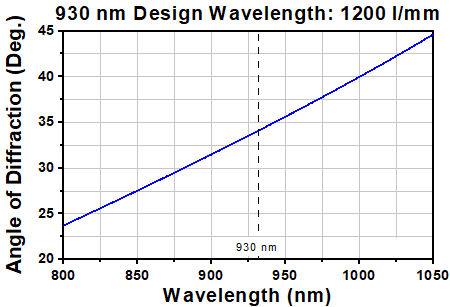

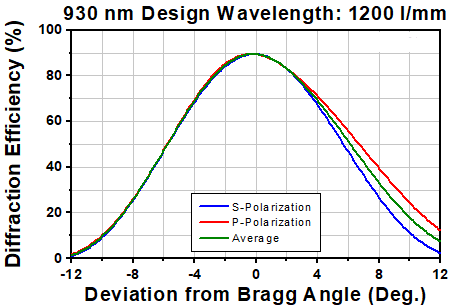

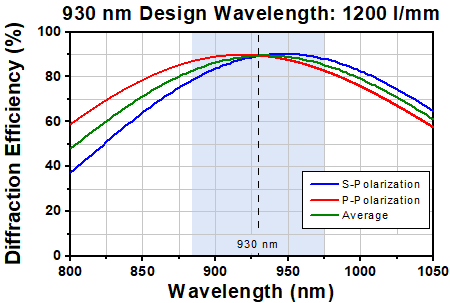

| T-GP3512N Specifications | |
|---|---|
| Design Wavelength | 930 nm |
| Spatial Frequency | 1200 ± 2 lines/mm |
| Line Perpendicularity | ±1° Off of 50 mm Edge |
| Angle of Incidence (AOI)a | 34° ± 1° |
| Diffraction Efficiencyb | 885 nm: S-Pol > 75%; P-Pol > 80% 930 nm: S-Pol > 80%; P-Pol > 80% 975 nm: S-Pol > 80%; P-Pol > 70% |
| BBAR Coatingc | 750 - 1050 nm Ravg < 0.75% |
| Transmitted Wavefront Error (RMS) | <λ/4 at 632.8 nm |
| Grating Film | Dichromated Gelatin |
| Cover-Plate Substrate | N-BK7 or Equivalent |
| Surface Quality | 40-20 Scratch Dig |
| Dimensions (L x H x T) | 50.0 mm x 30.0 mm x 6.0 mm |
| Clear Aperture | >42 mm x 22 mm |
| Length Tolerance | +0.0 mm / -0.2 mm |
| Height Tolerance | +0.0 mm / -0.1 mm |
| Thickness Tolerance | ±0.2 mm |
