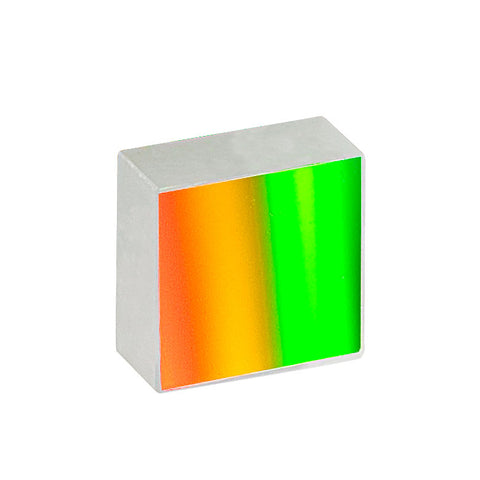

T-GR13-0305 - Ruled Reflective Diffraction Grating, 300/mm, 500 nm Blaze, 12.7 x 12.7 x 6 mm

Fosco Connect Part No.: T-GR13-0305

$ 125.00 or

T-GR13-0305 - Ruled Reflective Diffraction Grating, 300/mm, 500 nm Blaze, 12.7 x 12.7 x 6 mm

Product Drawing

Blaze Wavelengths of 400 or 500 nm

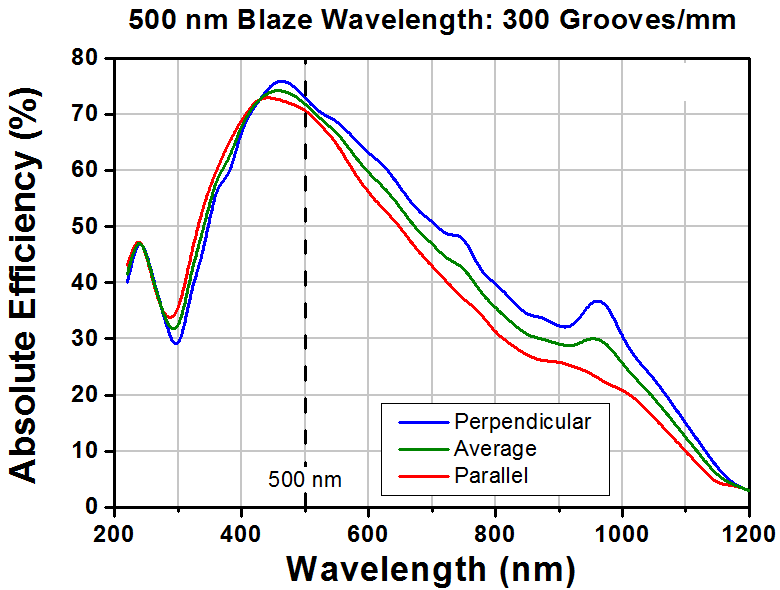

High Grating Efficiency of 60% to 80% at Blaze Wavelength
Low Ghosting, <0.5% of Parent Line
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 12.7 mm x 12.7 mm x 6 mm
Blaze Wavelength 500 nm
Grooves/mm 300
Blaze Angle 4° 18'
Dispersion 3.32 nm/mrad
