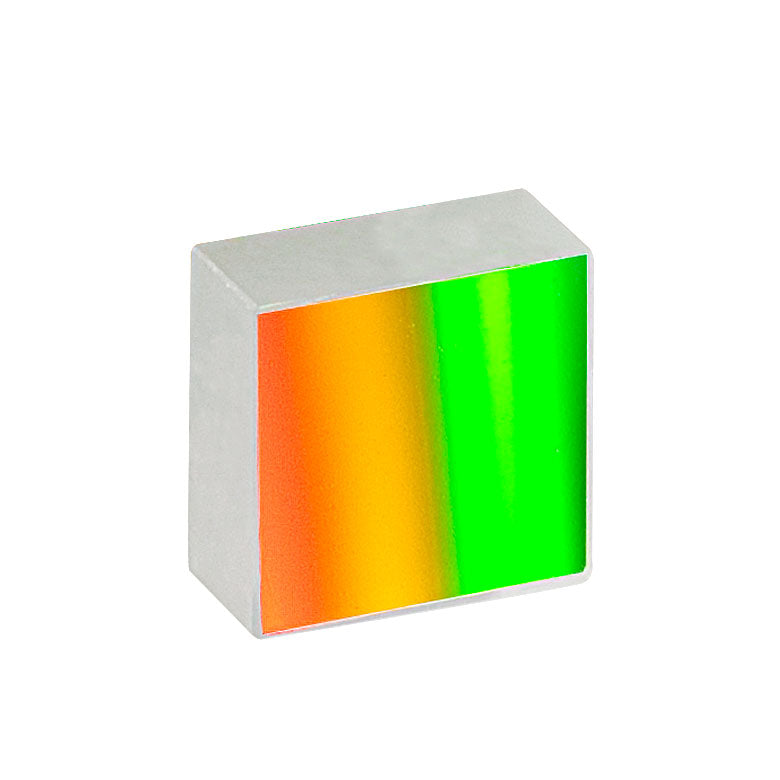

T-GR13-1203 - Ruled Reflective Diffraction Grating, 1200/mm, 300 nm Blaze, 12.7 x 12.7 x 6 mm

Fosco Connect Part No.: T-GR13-1203

$ 125.00 or

T-GR13-1203 - Ruled Reflective Diffraction Grating, 1200/mm, 300 nm Blaze, 12.7 x 12.7 x 6 mm

Product Drawing

300 nm Blaze Wavelength

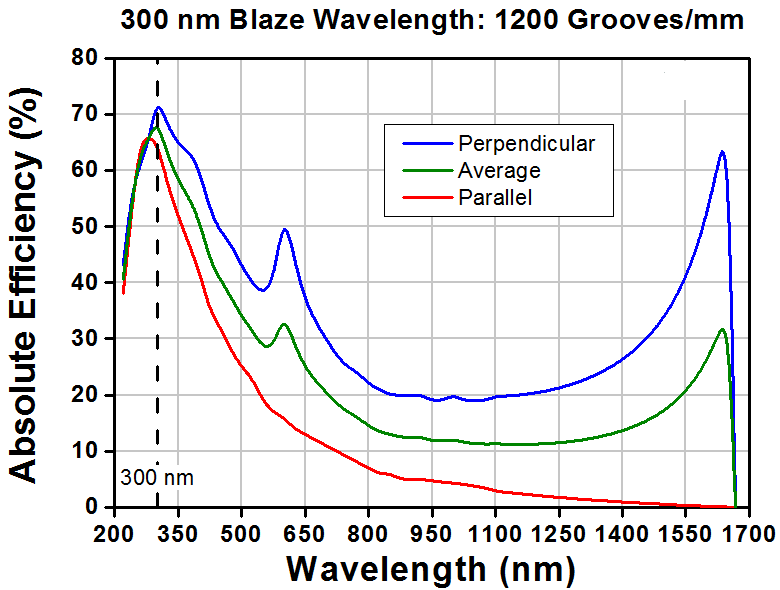

High Grating Efficiency of 60 to 80% at Blaze Wavelength
Low Ghosting: <0.5% of Primary Reflection
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 or 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 12.7 mm x 12.7 mm x 6 mm
Blaze Wavelength 300 nm
Grooves/mm 1200

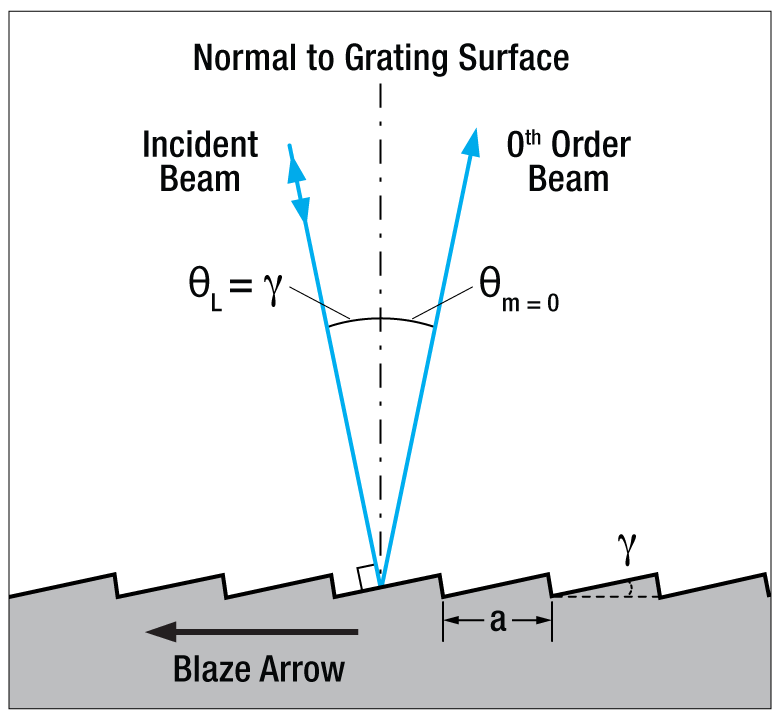

Blaze Angle 10° 22'
Dispersion 0.82 nm/mrad
